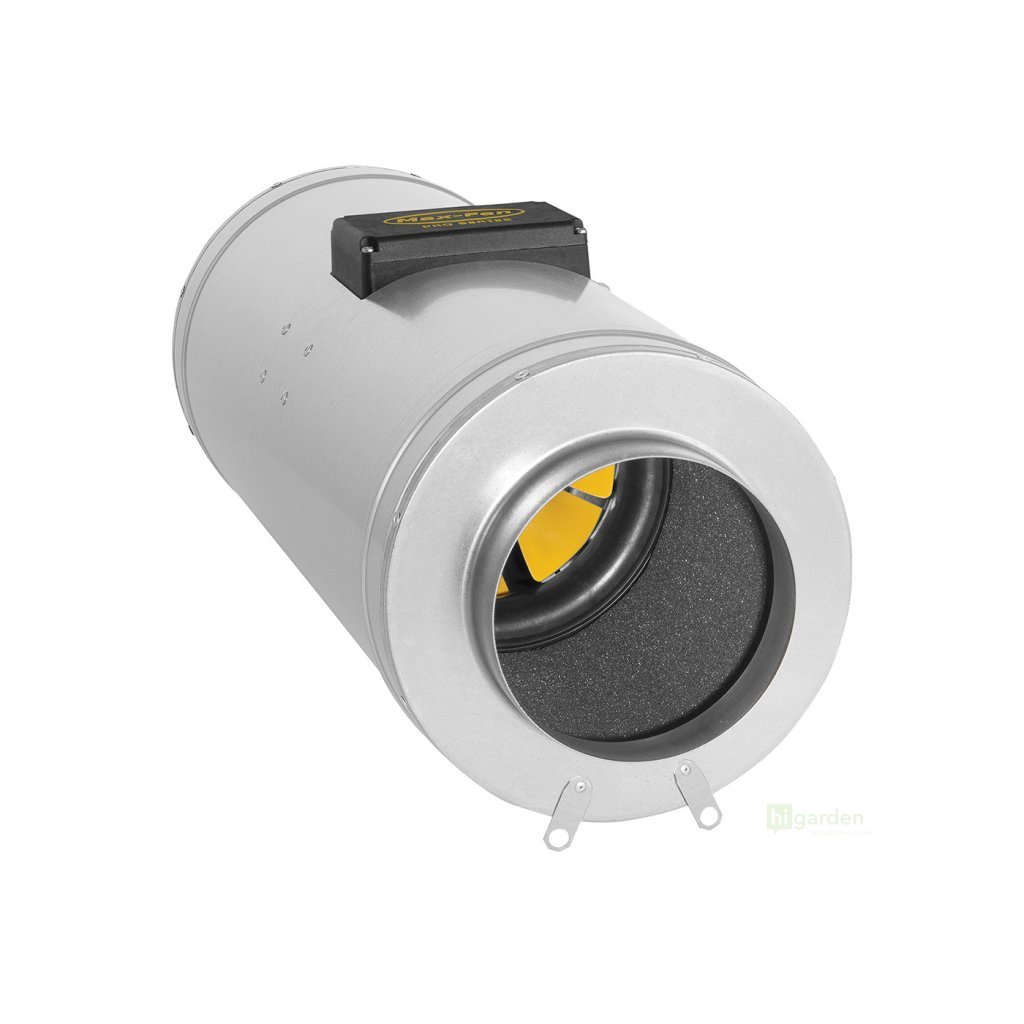

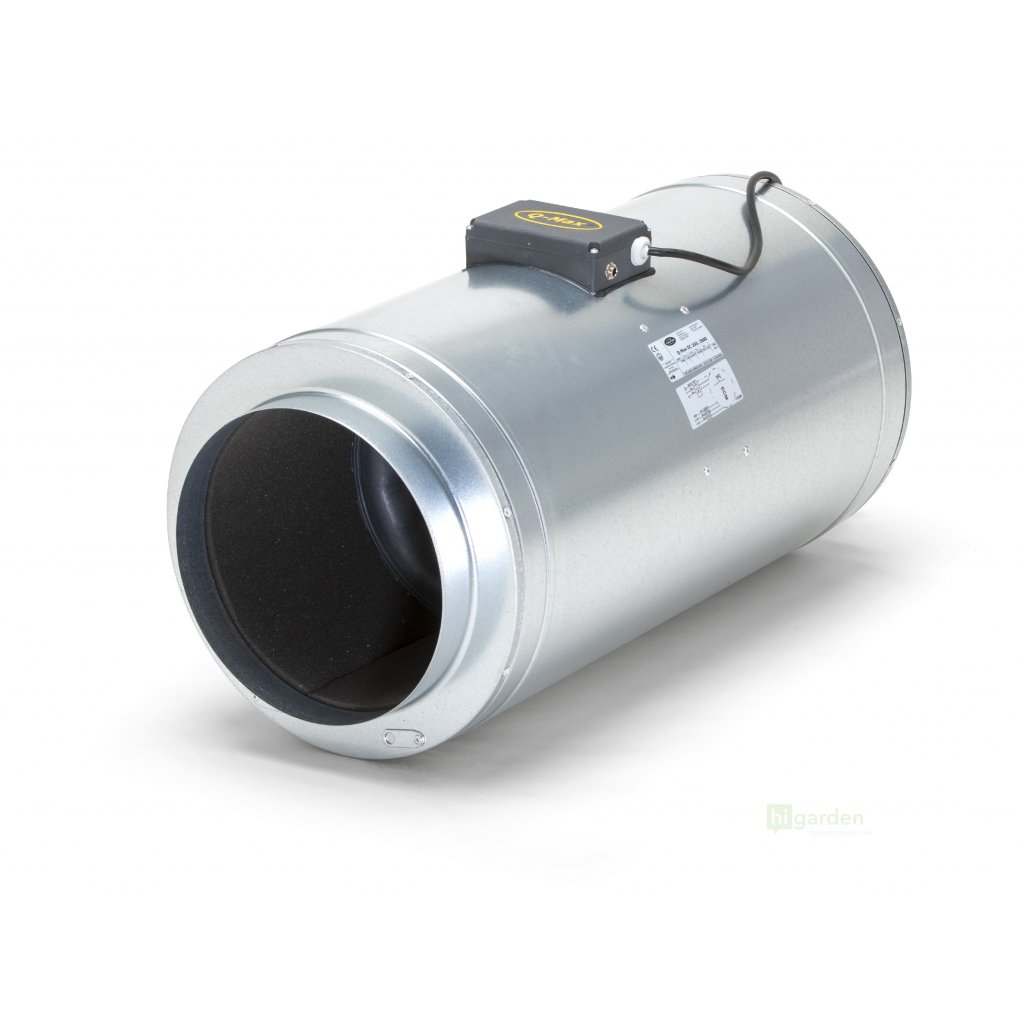

Q-Max Sound Insulated EC Ventilator, 2000 m3/h, 250 mm
Code: 9423Product detailed description

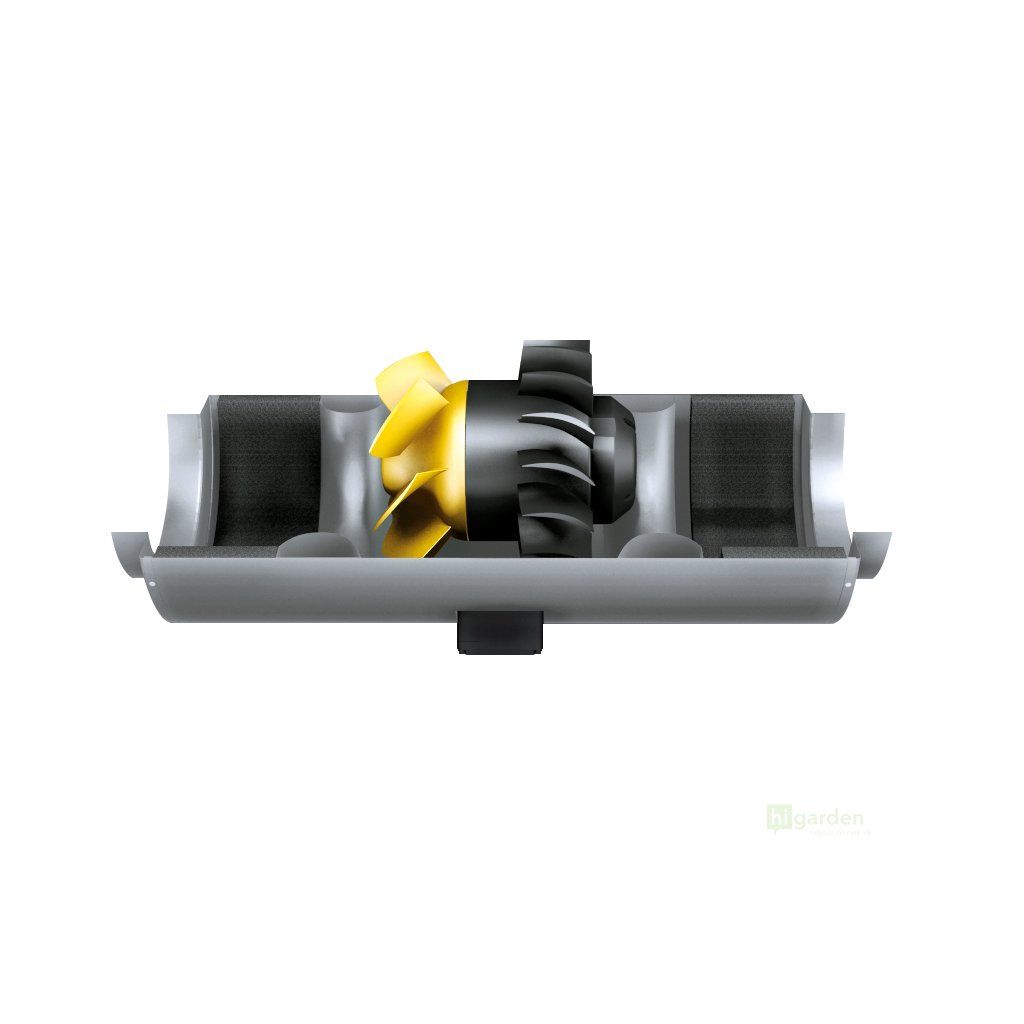

Q-Max EC is an intake/outtake ventilator with the highest aerodynamic efficiency and unrivalled energy consumption because of the new 3D rotor/stator. Quiet operation is guaranteed by the built-in silencer, which significantly lowers the noise level throughout the ventilation system. The ventilator creates an even airflow without turbulence, which makes it highly efficient yet silent. The ventilator is made in Germany, compact, easy to maintain and clean. The integrated hangers ensure easy installation.

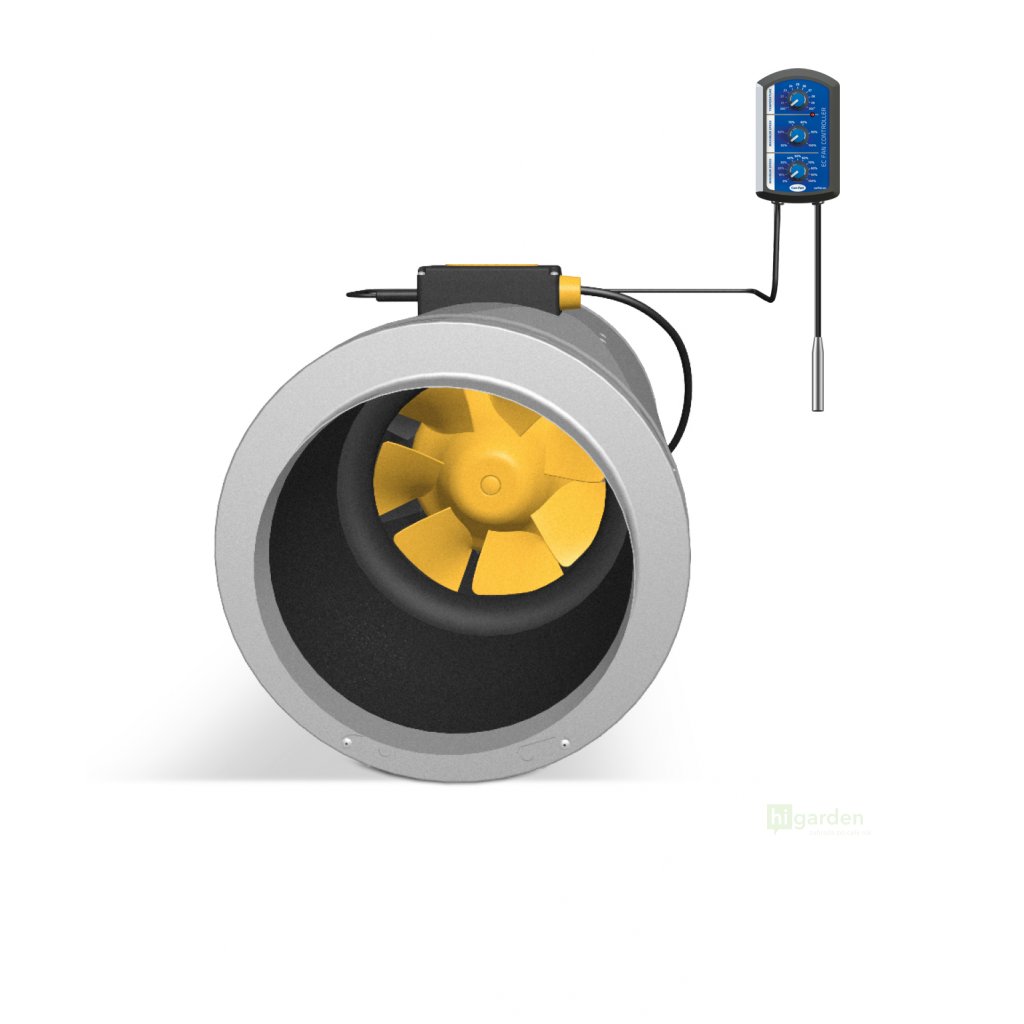

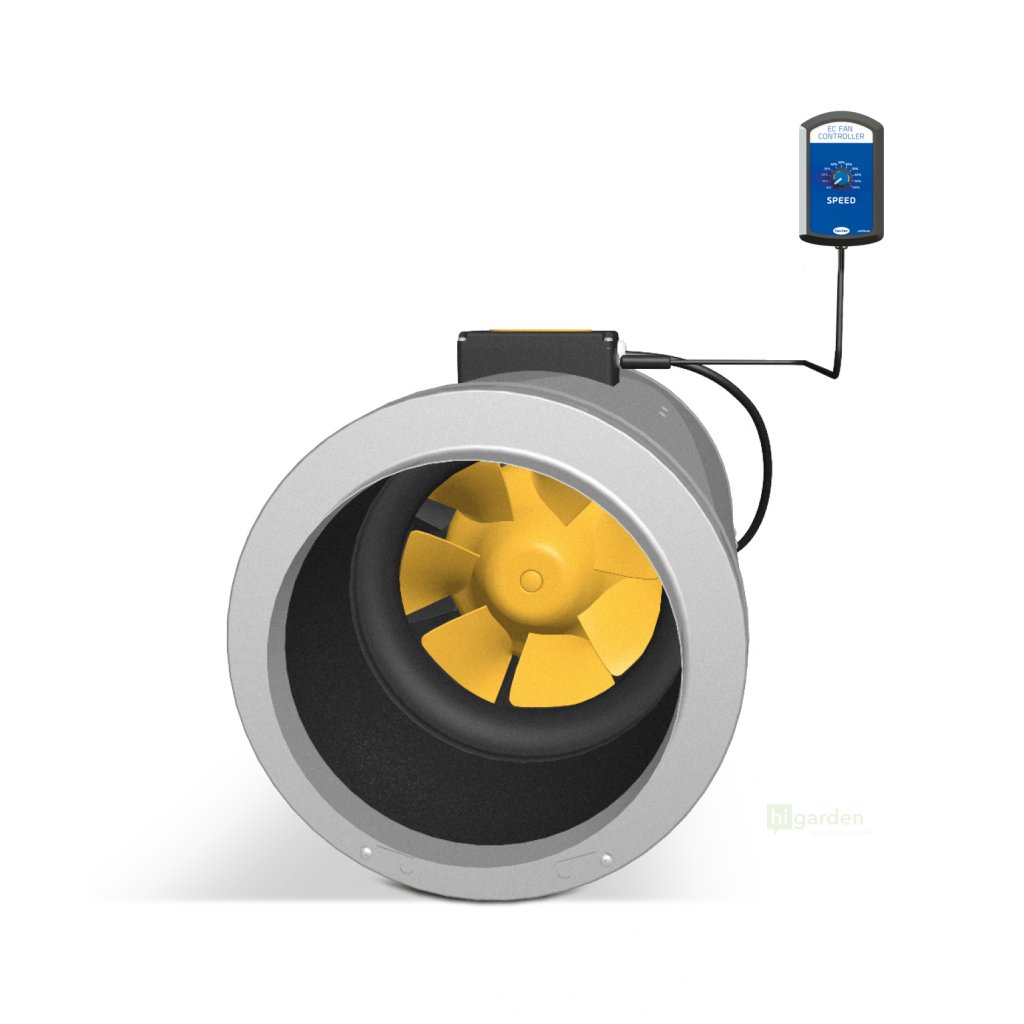

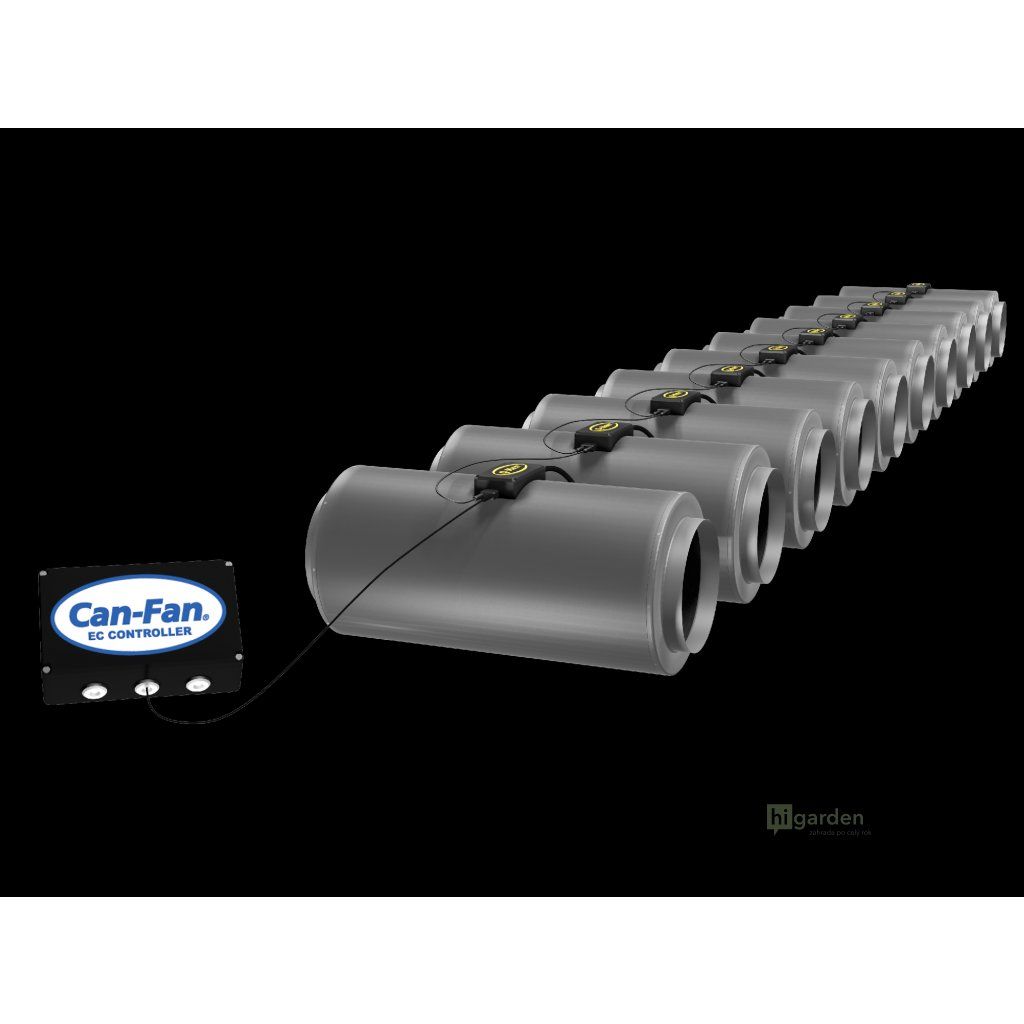

The ventilator itself doesn't have speed regulation, but you can connect it to the Q-Max Speed Controller, which can operate up to 10 of these ventilators simultaneously.
The incredibly quiet operation of the Q-Max ventilator is a result of high-quality sound insulation of the metal casing, even airflow without turbulences and smooth three-stage control.
Each of the Q-Max ventilators meets the demands of the ErP directive.
The maximum operating temperature of the air is 40 °C.
Product details:
Voltage: 230 V
Max. current: 1,7 A
Consumption: 250 W
Rotations: 3827 RPM
Airflow: 2000 m3/h
Noise level: 61 dB
If you have any questions, contact us at info@higarden.eu.
Additional parameters
| Category: | Can-Fan Q-Max - Silent Ventilators |
|---|---|
| Flange (mm): | 250 |
| Speed Control: | No regulation, Silent |
| Technology: | Axial |
| Airflow (m3/h): | 2000 |
| PFHGX: | Levné, Nejprodávanější, Doporučené, Kvalitní, Značkové, Základní |
| Power/Airflow: | 2000 m3/h |
| Power consumption: | 313 W |
| Current: | 2,1 A |
| Voltage: | 230 V |
