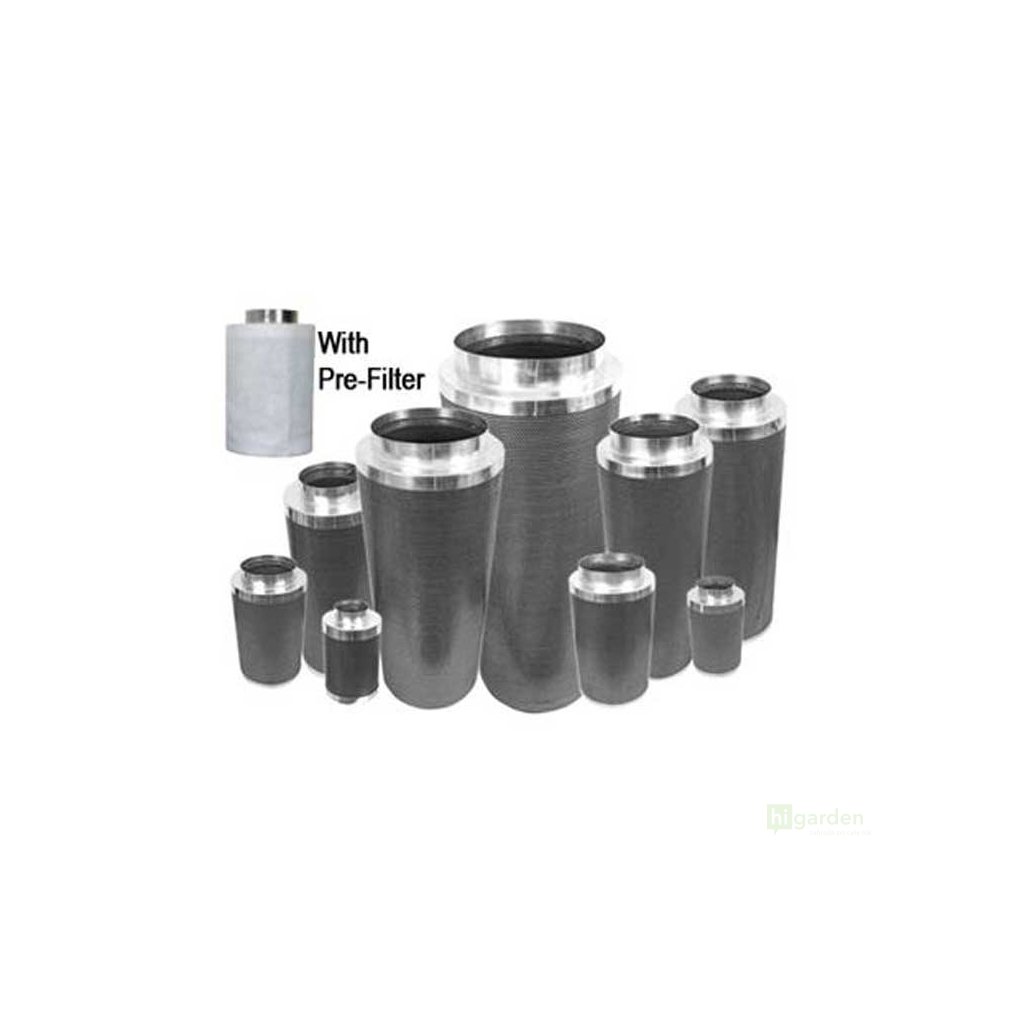

Phresh Filter 500 PRO,50cm,500m3/hr,125mm

Technical data:

Filter housing: galvanized steel
Open space: 53%
Flange and base: aluminium
Flange height: 40 mm
Outer flange diameter: 125 mm
Inner flange diameter: 122.4 mm
Filter diameter: 205 mm
Filter height: 505 mm
Box dimensions: 219 x 219 x 540 mm
Weight 6.2 kg
Activated Carbon - Type: Granular - High Activity - Australian RC48
Carbon Bed Depth: 40 mm
Mounting: vertical / horizontal
Lifetime: 18 - 24 months
Maximum Operating Temperature: 80 ℃
Maximum Relative Humidity: 80%

Recommended maximum airflow: 480 m3 / h
Recommended maximum fan power: 500 m3 / h

Phresh Filters are odor filters that use the highest quality activated carbon available on the planet as the internal cartridge. It is mined in Australia in deposits that are several million years old. It is characterised by minimal dust and a huge absorption capacity. Another huge advantage is their weight, which has gone down significantly due to the super quality of the activated carbon, which is really noticeable especially in high air flow filters. Of course, the filter includes a dust filter (firon), which can be easily removed or put on the filter body.

The manufacturer recommends that this dust filter be cleaned every 3 - 6 months, washed in lukewarm water and reattached to the filter body. When the air hose is subsequently mounted, attaching it with a steel clip or tape becomes a simple matter. The hose does not slip and attachment is really a breeze. We must also mention that we can recycle the used charcoal, for example in the garden, as it is a very high quality soil enrichment agent.

Calculation to choose the right filter
Calculate the volume of air in a room by multiplying the length of the room (m) by the width of the room (m) and the height of the ceiling (m).
E.g.: A room 4 m long, 3 m wide and 2 m high => 4 x 3 x 2 = 24 m3
Multiply the resulting volume of air by 60 (i.e. the number of minutes per hour) to find the amount of air that needs to be purified in 1 hour.
Compare the result with the maximum output of the selected filter. If its max. performance is higher than our result, the filter is sufficient for the space.
