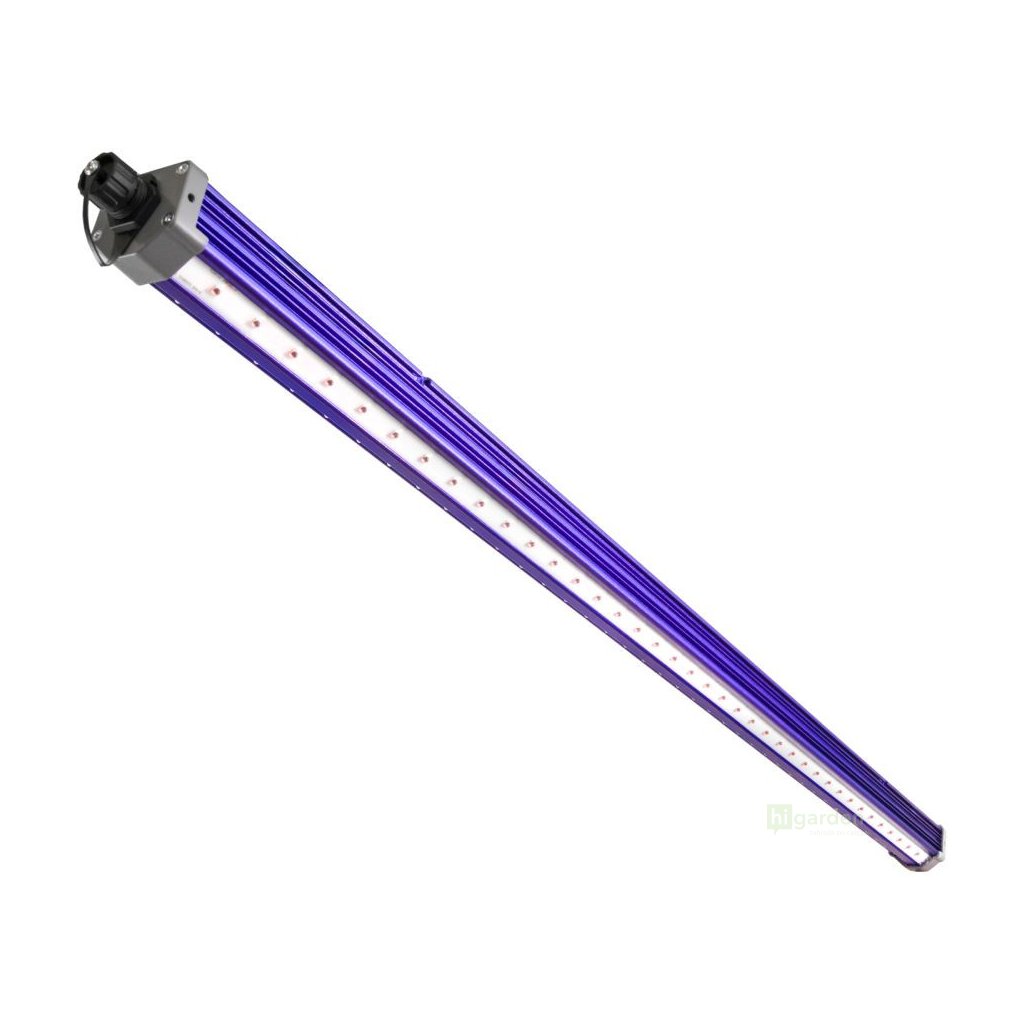

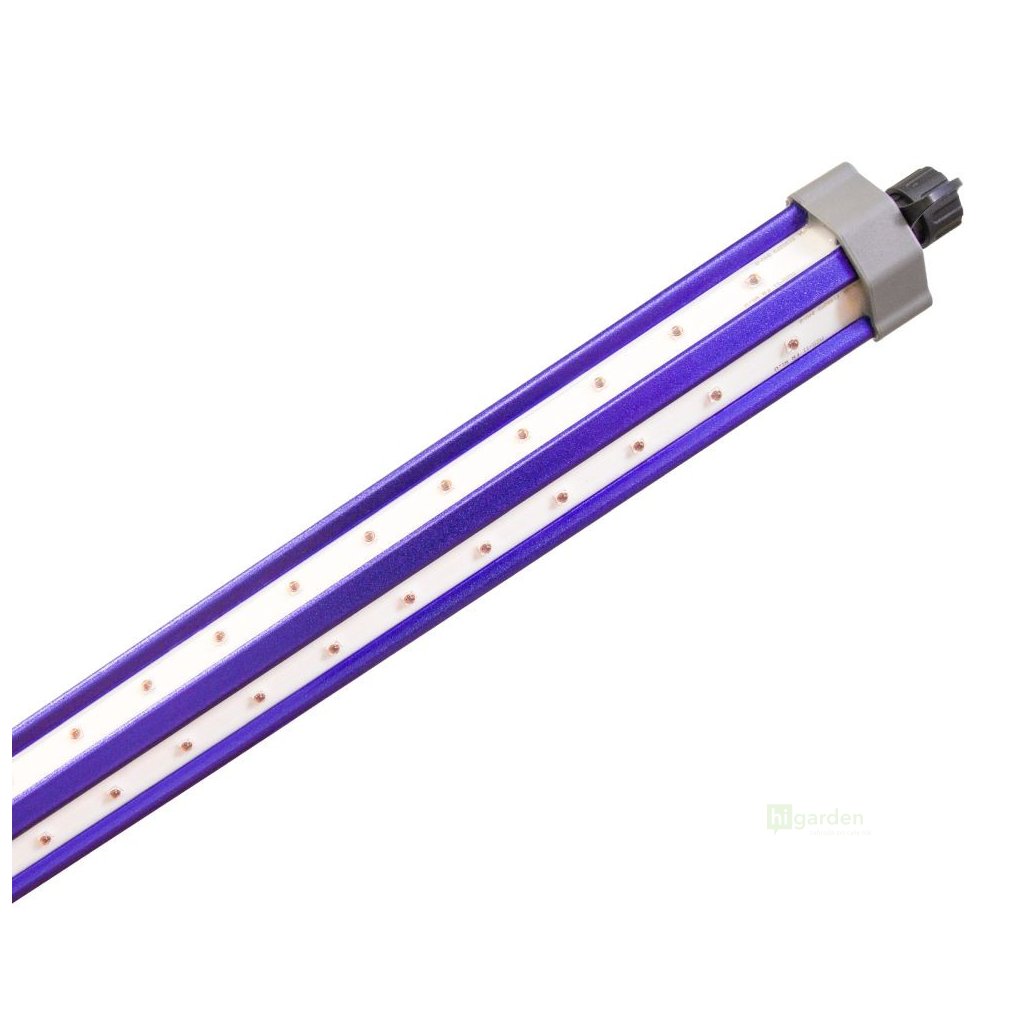

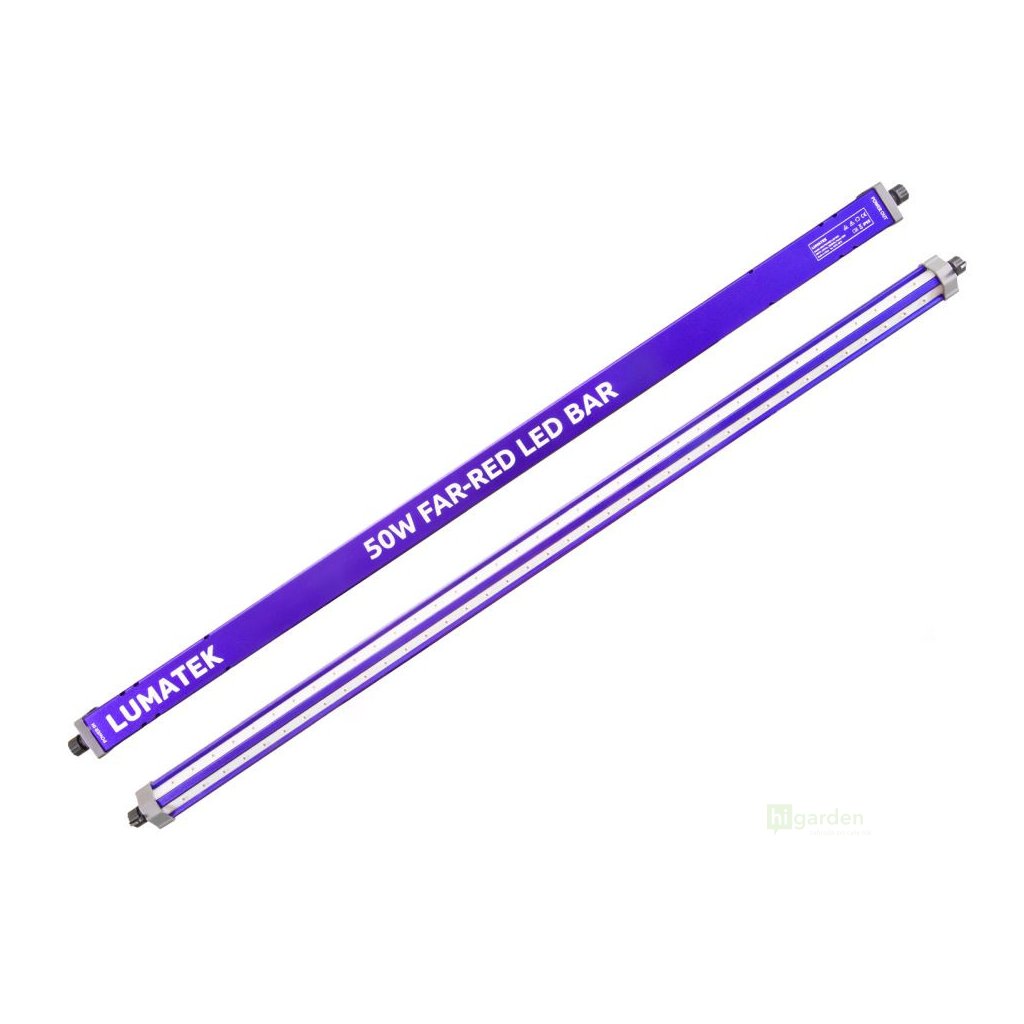

Lumatek LED Bar Far-Red 50W

The Lumatek LED Bar Far-Red 50W supports stem elongation and leaf expansion during the growing phase and the first days of flowering. This allows the growing area to be used to the maximum. Due to its high efficiency, it is also suitable for use at the end of the growing cycle to improve the overall efficiency of photosynthesis.

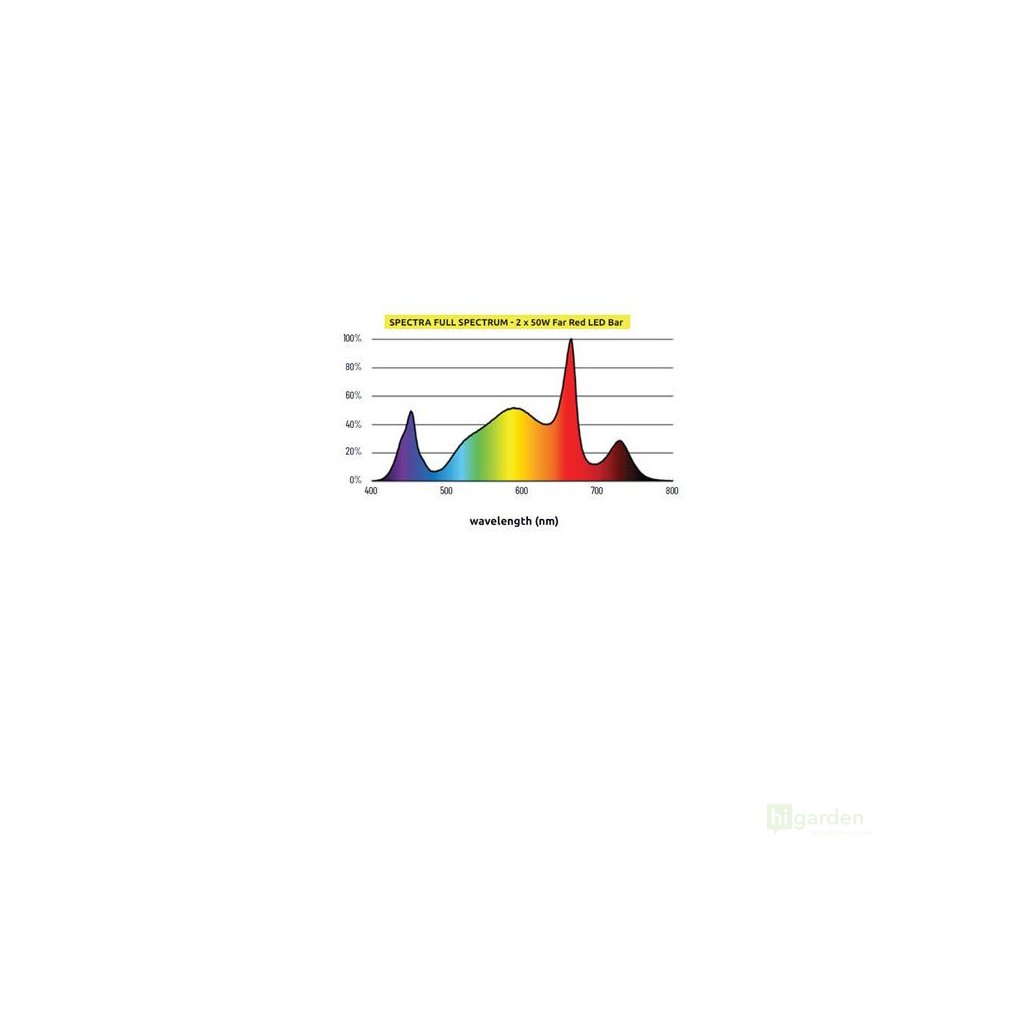

With a peak at 730 nm wavelength and a power output of 13 μmol/s [600-700] nm and 140 μmol/s [701-800] nm, the LUMATEK 50W FAR-RED is an ideal complementary tool for Lumatek Zeus LED fixtures. It helps to increase the photochemical efficiency of PSII and the rate of photosynthesis.

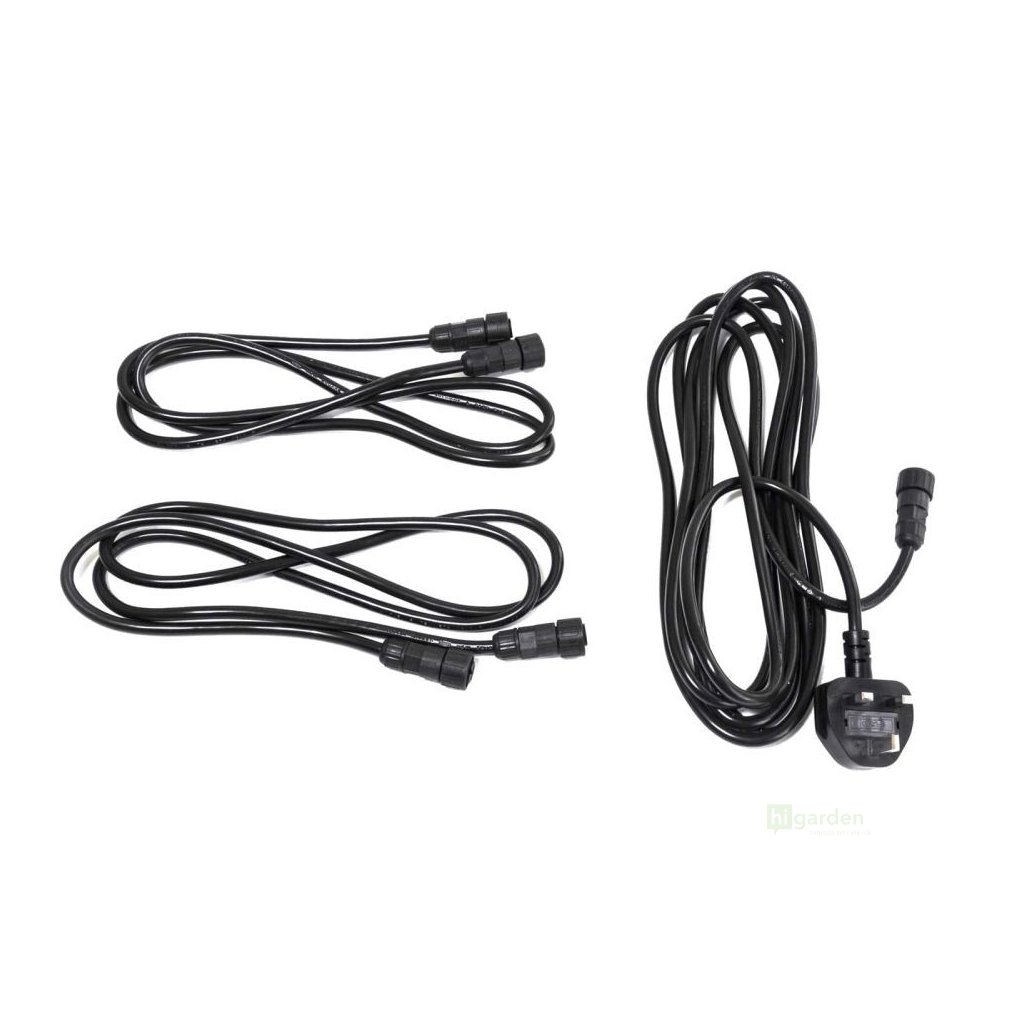

The unit has an independent power supply and can also be connected in series using interconnect cables. To ensure the performance of the unit, this LED bar has one input and output socket for the power cable or Daisy Chain interconnect cable, depending on the application of this bar. For this reason, the Power (4 m) and Daisy Chain (1.5 m) cables are sold separately.

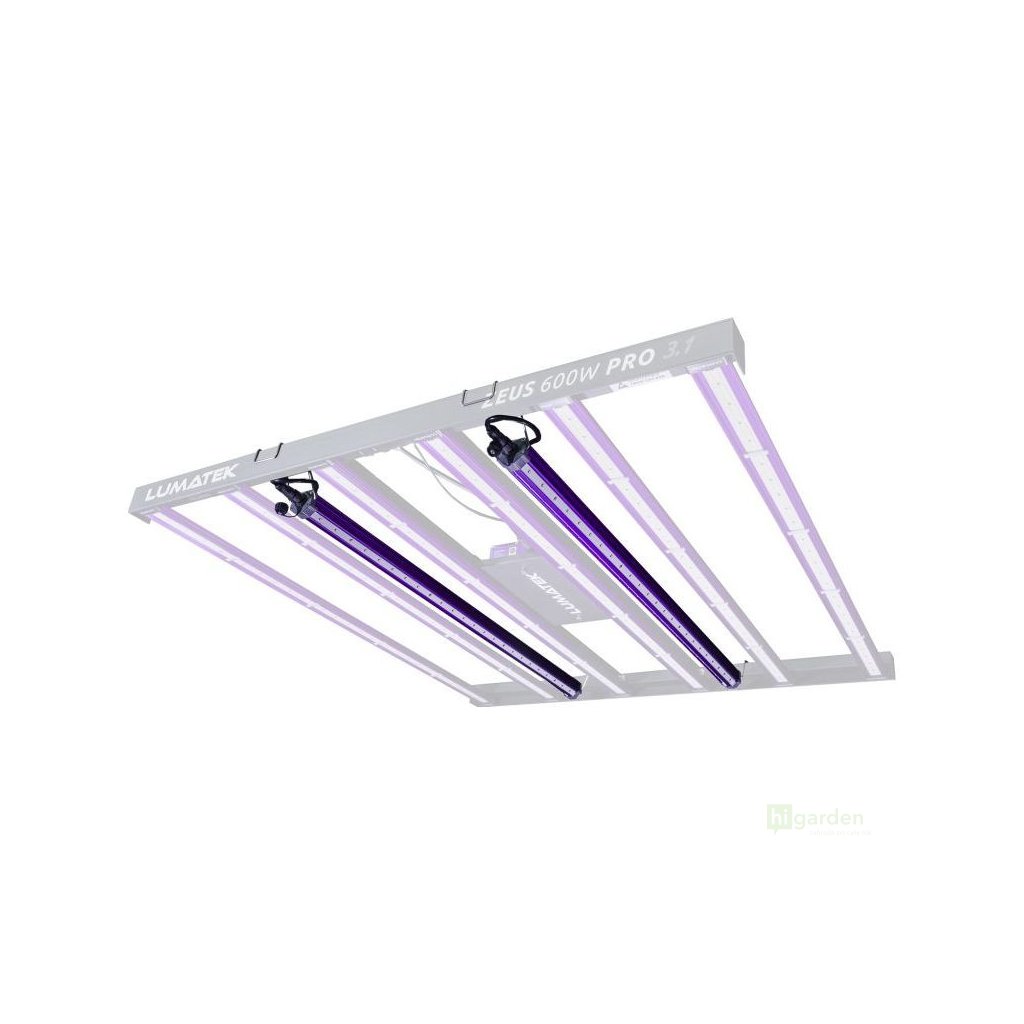

The LUMATEK 50W FAR-RED LED BAR has been designed to fit directly into ZEUS luminaires, and when the FAR-RED photons are mixed with the Full-Spectrum photons produced by the ZEUS range, a 10-20% ratio is assured.

Integrate a minimum of 2 LUMATEK 50W FAR-RED LED BAR units with:
- ZEUS 465W PRO 2.9 for a 1.2 x 1.2 m area
- ZEUS 600W PRO 3.1 for a 1.5 x 1.5 m area
- ZEUS 1000W XTREME PPFD CO2 Luminaire for a 1.5 x 1.5 m area with CO2 addition.

Integrate a minimum of 3 LUMATEK 50W FAR-RED LED BAR units with:
- ZEUS 1000W PRO for 1.5 x 2.0 m area

Specifications:
- ePPF (400 - 750) nm: 155 µmol/s
- Efficiency (400 - 750) nm: 3.1 µmol/J
- Input voltage: 220-240 V AC 50-60 Hz
- DIVER: 50 W, 220-240 V AC 50-60 Hz
- Input Power: 50 W (+/- 5%) @230 V AC
- Waterproof/Dustproof: IP65
- Lifetime: L90 > 45000 hrs.
- Light distribution: 140°
- Light source: Diode light: FAR-RED
- Dimensions: 1000 X 48 X 42 mm
- Weight: 1.2 kg
- Thermal management: passive cooling
- Power supply system: heat sink: > 0.90
- Operating Temperature: -10° - ±40°C
- Operating Humidity: 20% - 80% non-condensing
- Dimmability: No
- DAISY-CHAIN Wiring: Yes (max. 18 pcs)
