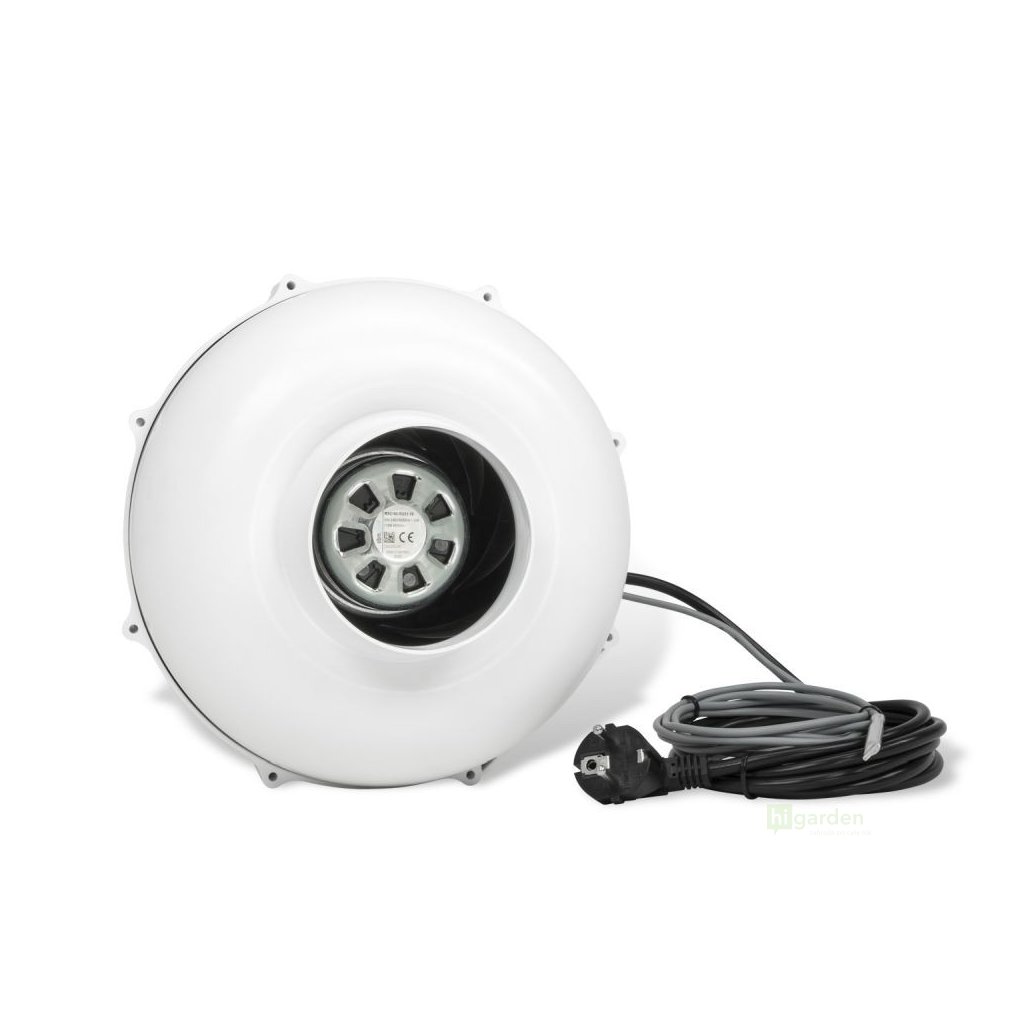

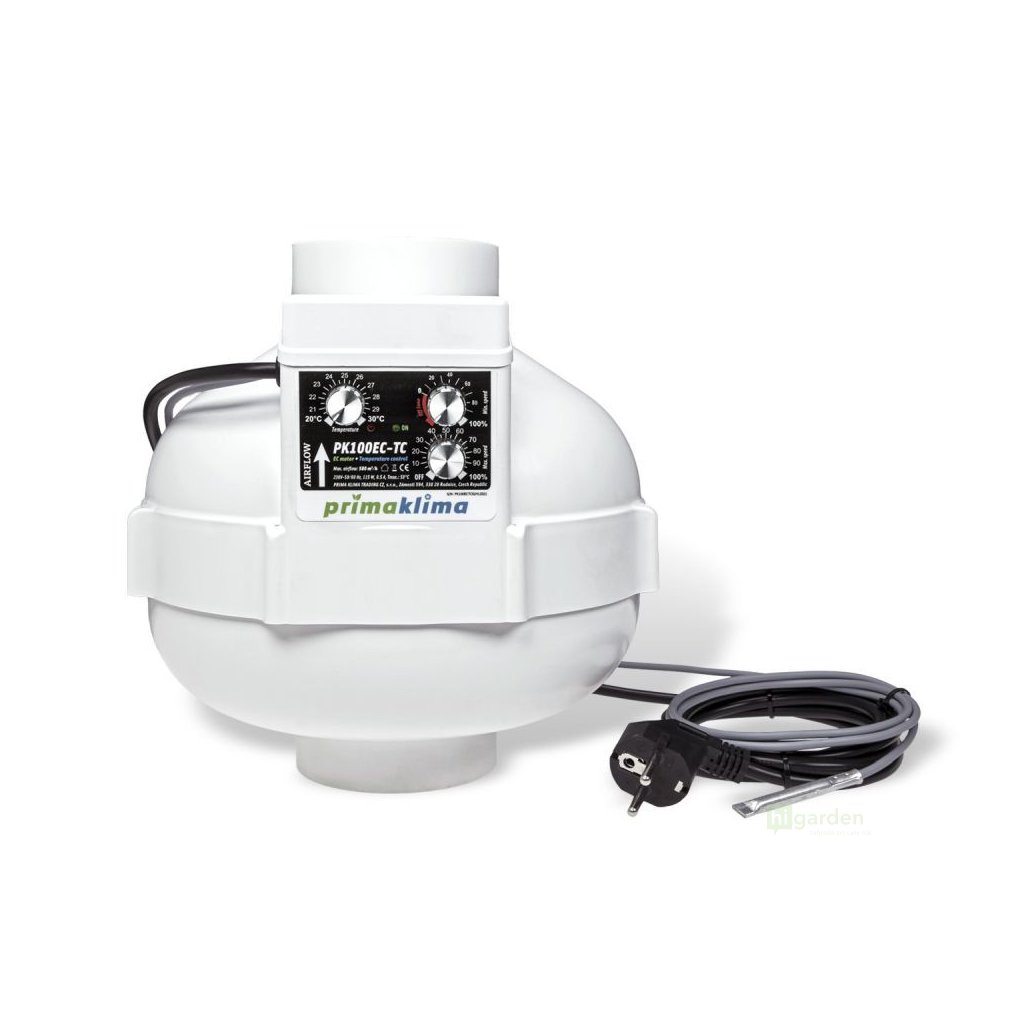

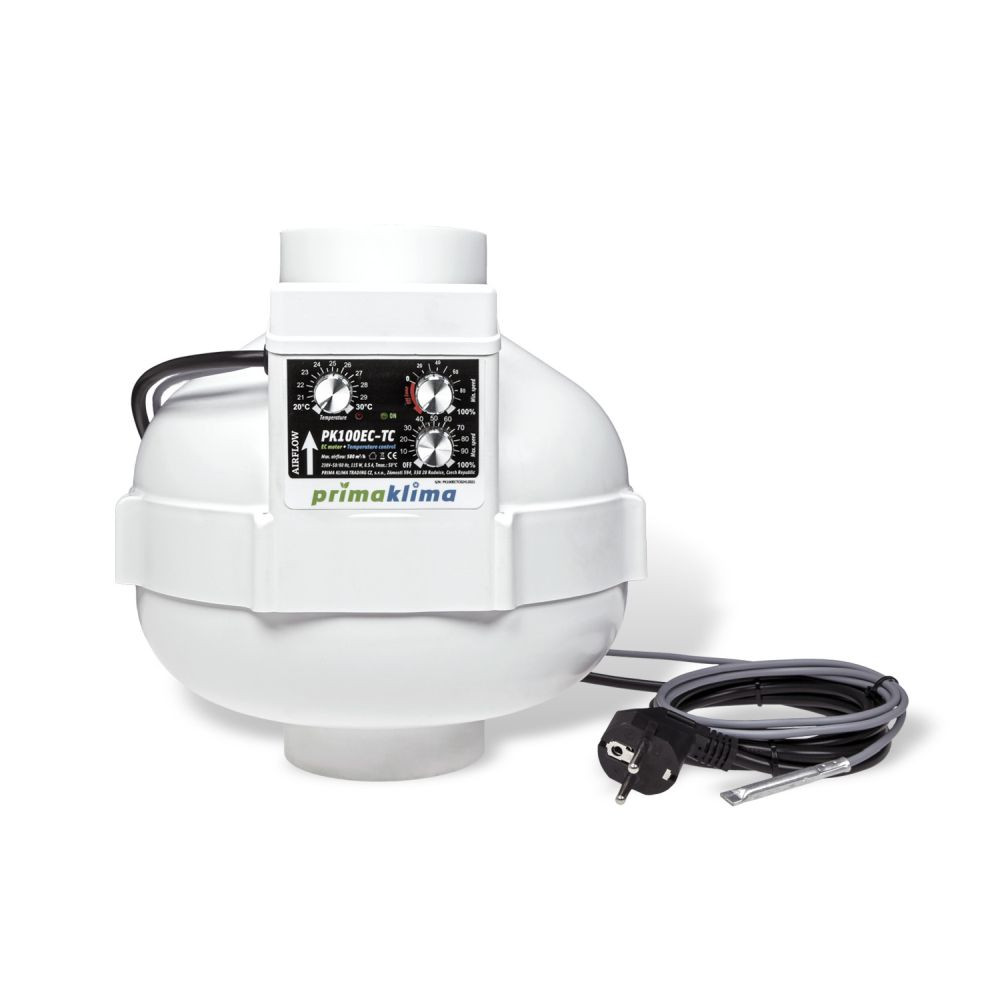

PRIMA KLIMA fan 580m3/h, 100mm, motor with thermal regulation (PK100EC-TC)

Fan with quality and premium EC motor. The fan has an adjustable temperature and speed control function. Compared to competing products, the motor has lower power consumption, quieter operation and longer life.

Other advantages include aerodynamic shape and backward curved blades.

The fan flange is 100mm with a flow rate of 580m3/h.

The latest trend in HVAC is the use of fans with a new generation of efficient EC(EC = electronically commutated) motors. This trend has also reached the standard duct fan segment for circular ducts. EC technology brings the user significant long-term savings in operating costs. Fans with EC motors are characterized by interesting economic energy consumption and very simple control. The speed can be controlled according to the air output requirement and highly efficient operation. To achieve the same airflow, an EC motor fan consumes much less energy than a conventional AC motor fan.
EC motors achieve energy savings not only at full power, but also at lower speeds. In this case, the difference in energy consumption compared to an AC motor is even more significant. Lower consumption = less operating costs. The advantage of these fans predestines them for use in a wide range of applications and it is only a matter of time before they replace the structurally obsolete AC motors.

Main advantages:
- adjustable temperature and speed
- impeller with backward curved blades
- low power consumption
- low noise emissions
- aerodynamically optimized shape
- impact-resistant and durable housing made of flame-retardant polyamide (nylon)
- connection and control system integrated into the housing

Technical specifications:
- Flange: 100mm

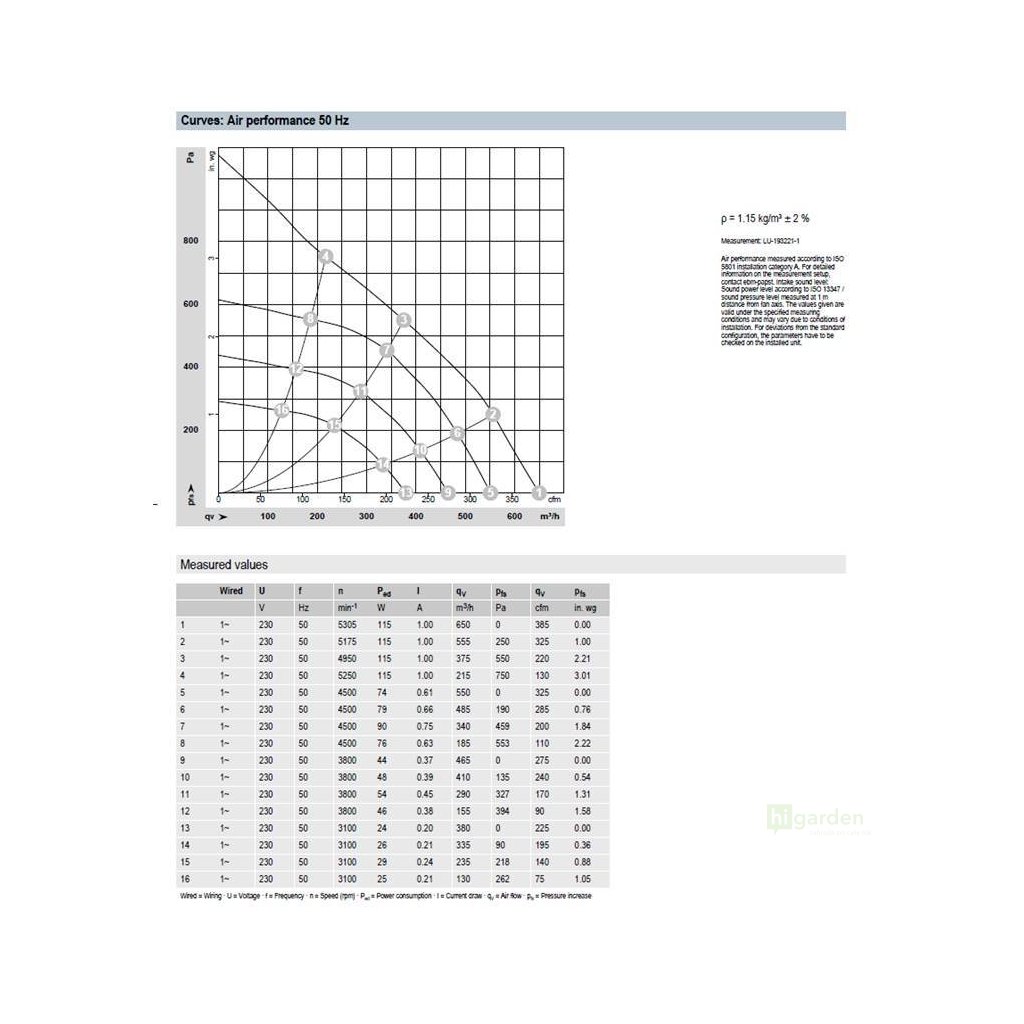

- Max air flow: 580m3/h
- Power: 0-115 W
- AC Input: 230 V 50/60 Hz 0.5 A
- Max temperature: 42 °C
- Dimensions: 244 mm x 241 mm (W/H)
- Weight: 2.4 Kg (3.04 Kg with box)
