GSE Timer Box II 12x600W, 400V (three-phase)
Code: 1035Related products
Product detailed description

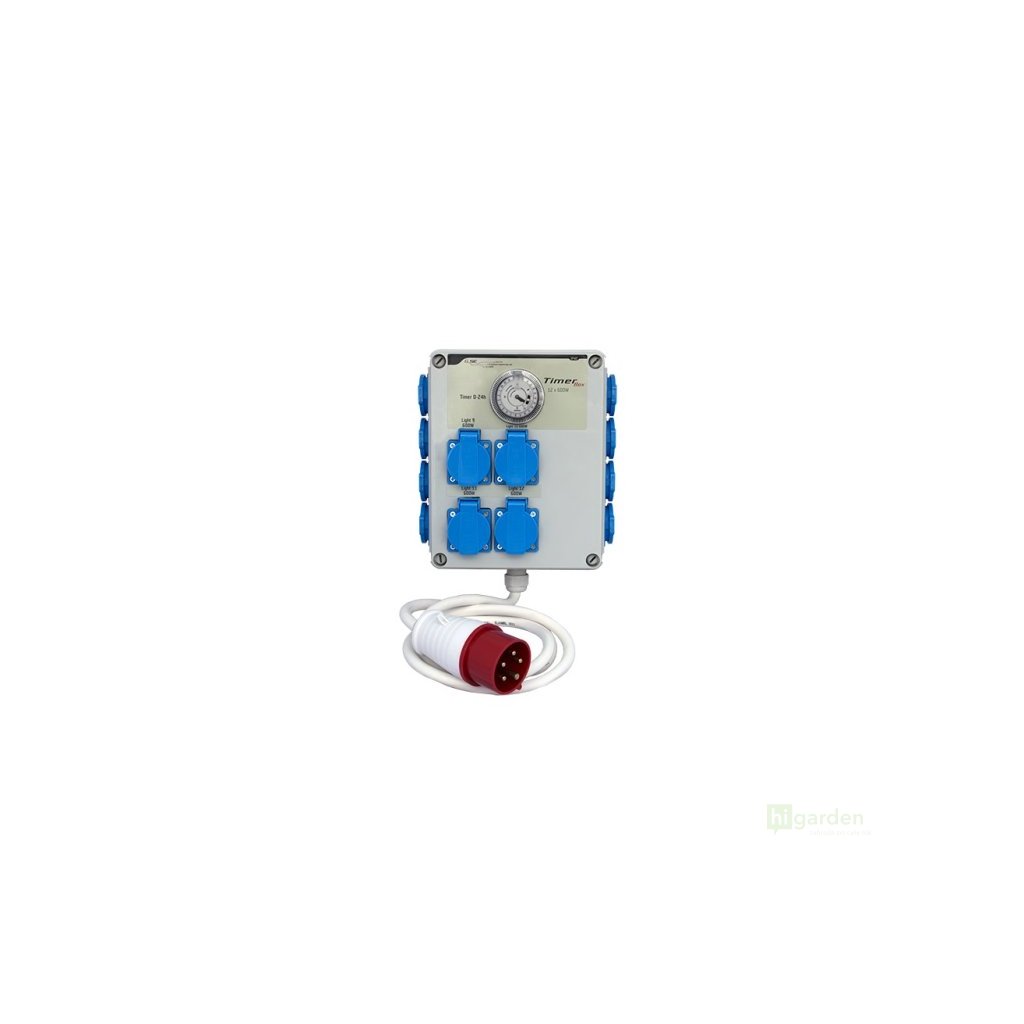

The GSE Timer Box II mechanical timer can switch twelve 600W ballasts using 16 A contactors. The timer switch operates in 24-hour cycles and can switch every 15 minutes, or you can set the timer to be always on or always off. The device has a 2.5mm² thick power cable to prevent overheating.
The timer switch has a rechargeable battery, which can keep the device running for 36hours in case of a power outage.
We recommend charging the battery at least once a year. The battery has a 14month warranty.
The device uses one circuit (total wattage 10800W).
Technical details:
- timer size: 200x255x95mm
- cover size: 230x300x110mm
- 24-hour cycle, 15min. adjustable segments
- input, frequency: 400 V / 50 HZ
- contactor: 4 x 16 A / 230 V
- protective cover: IP40 (no moisture protection, protected against solid objects over 1mm)
- power cable: 5 pole, included (CEE16) 3x16A, 12x600W
If you have any questions, contact us at info@higarden.eu.
Additional parameters
| Category: | Relays |
|---|---|
| Outlets: | 12x |
| Timer switch: | Mechanical |
| Unswitched socket for heating: | No |
| Connection: | 1x Socket 400V |
| PFHGX: | Levné, Nejprodávanější, Doporučené, Kvalitní, Značkové, Základní |
| The item has been sold out… | |
