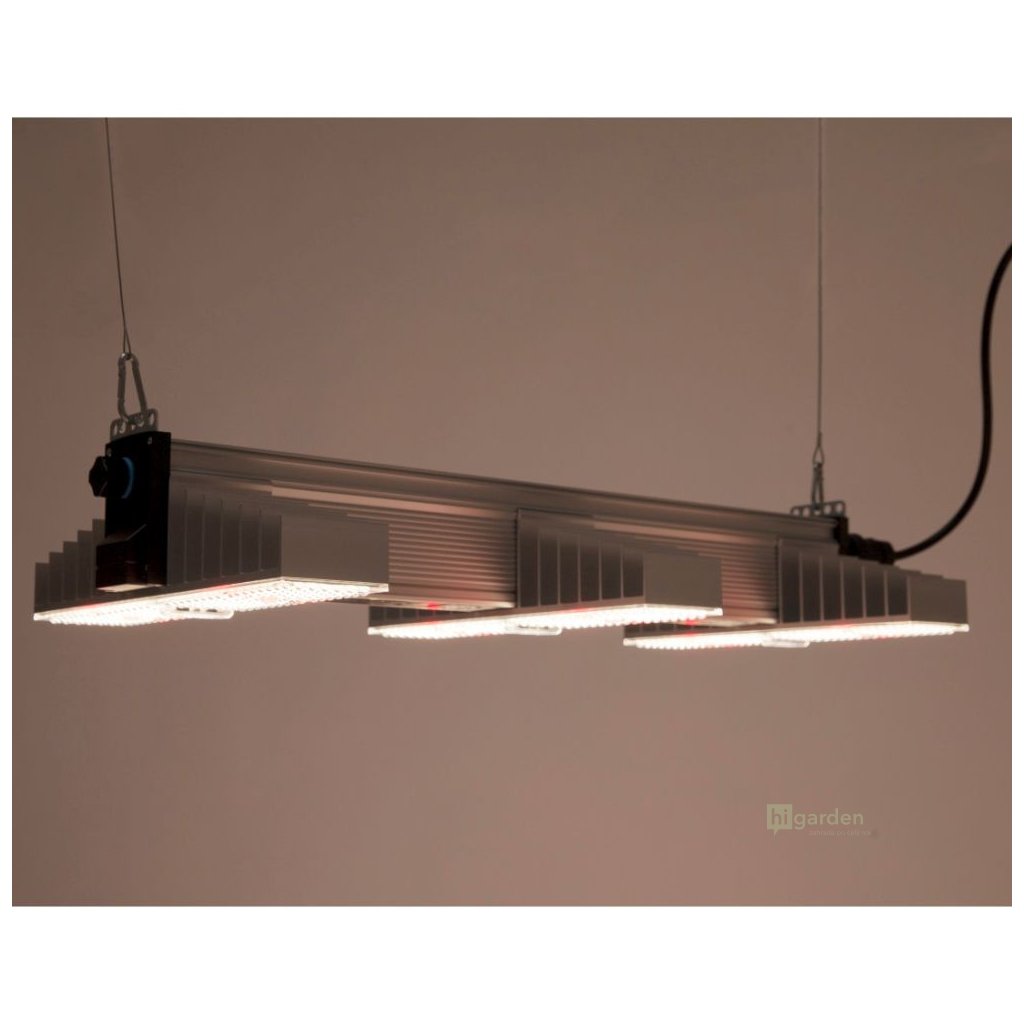

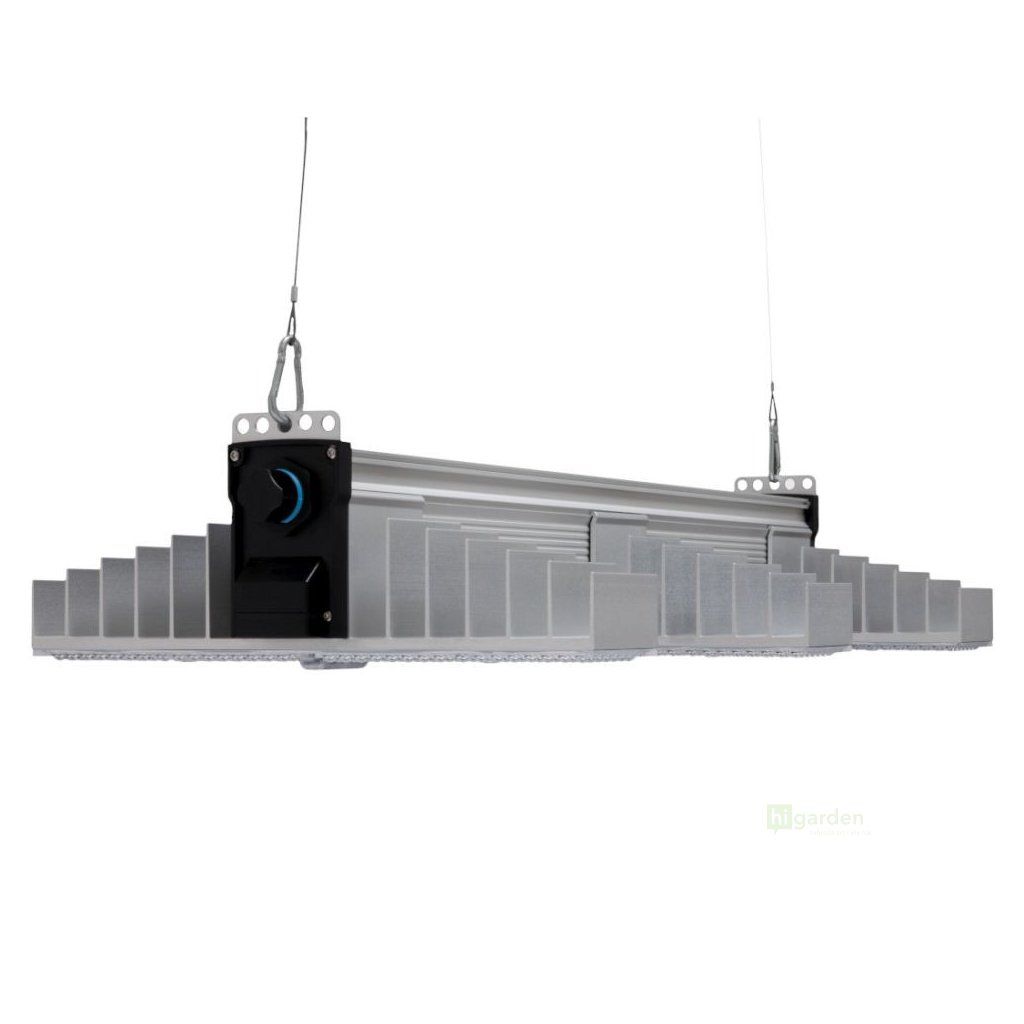

SANlight EVO 3-80 200W LED 3 µmol/J - V1.5

Product detailed description

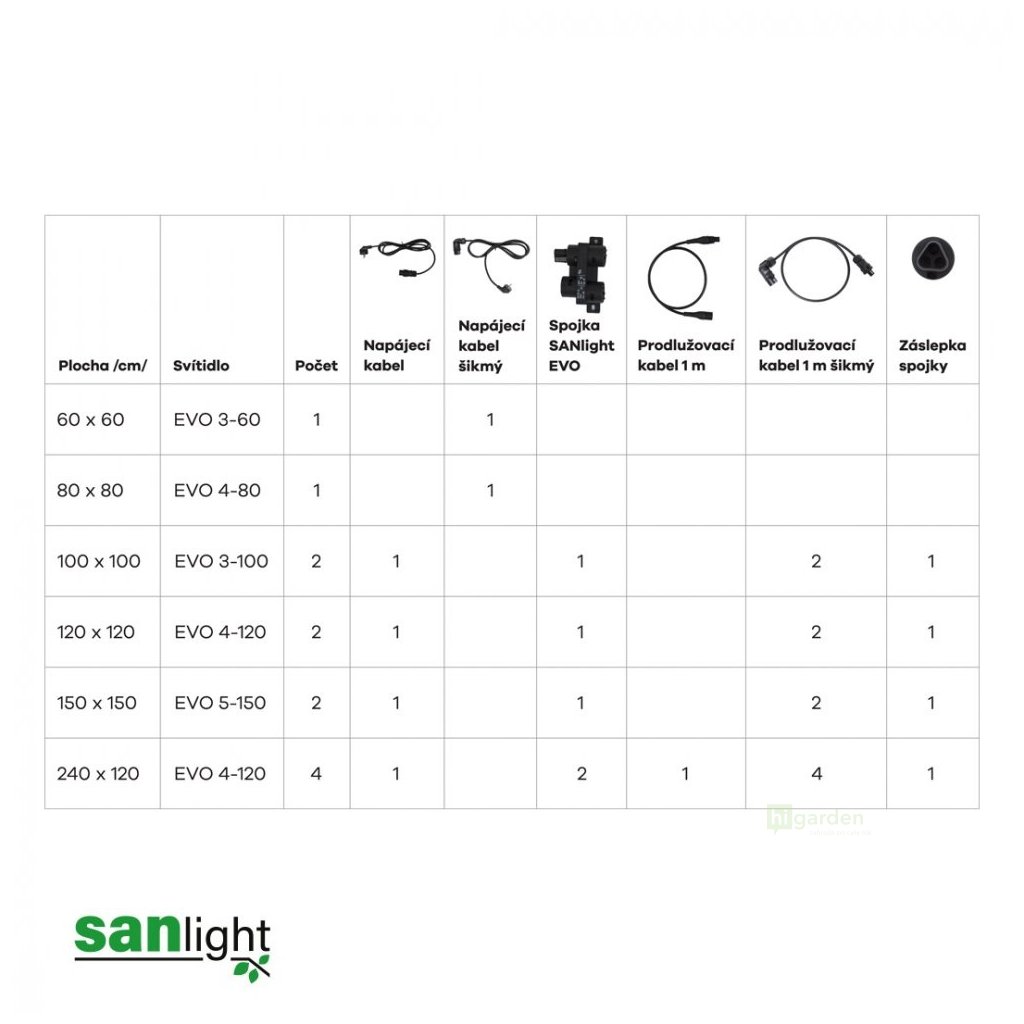

Attention, the product is supplied without power cord, we recommend to choose one of the following:
SANlight power cord for EVO/Q-Series GEN2 lights
Angled SANlight power cable for EVO/Q-series lights

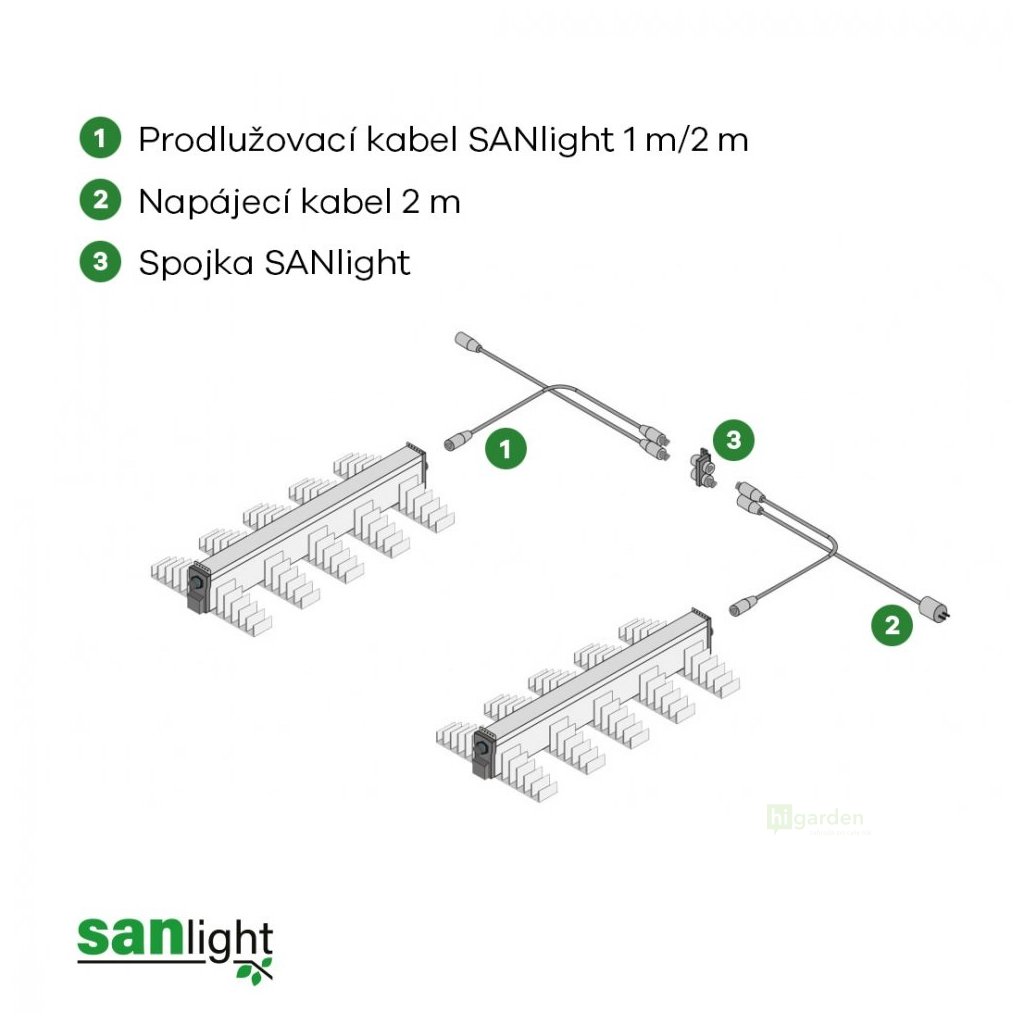

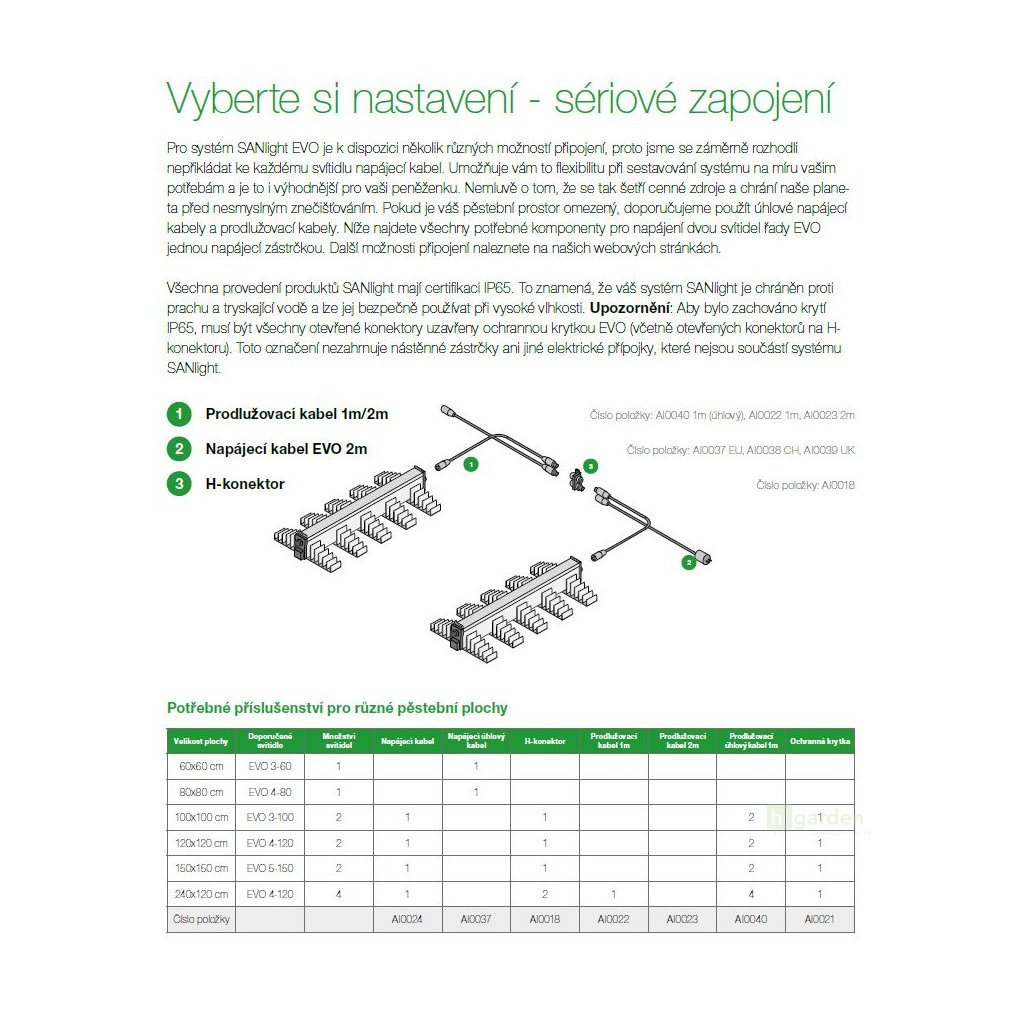

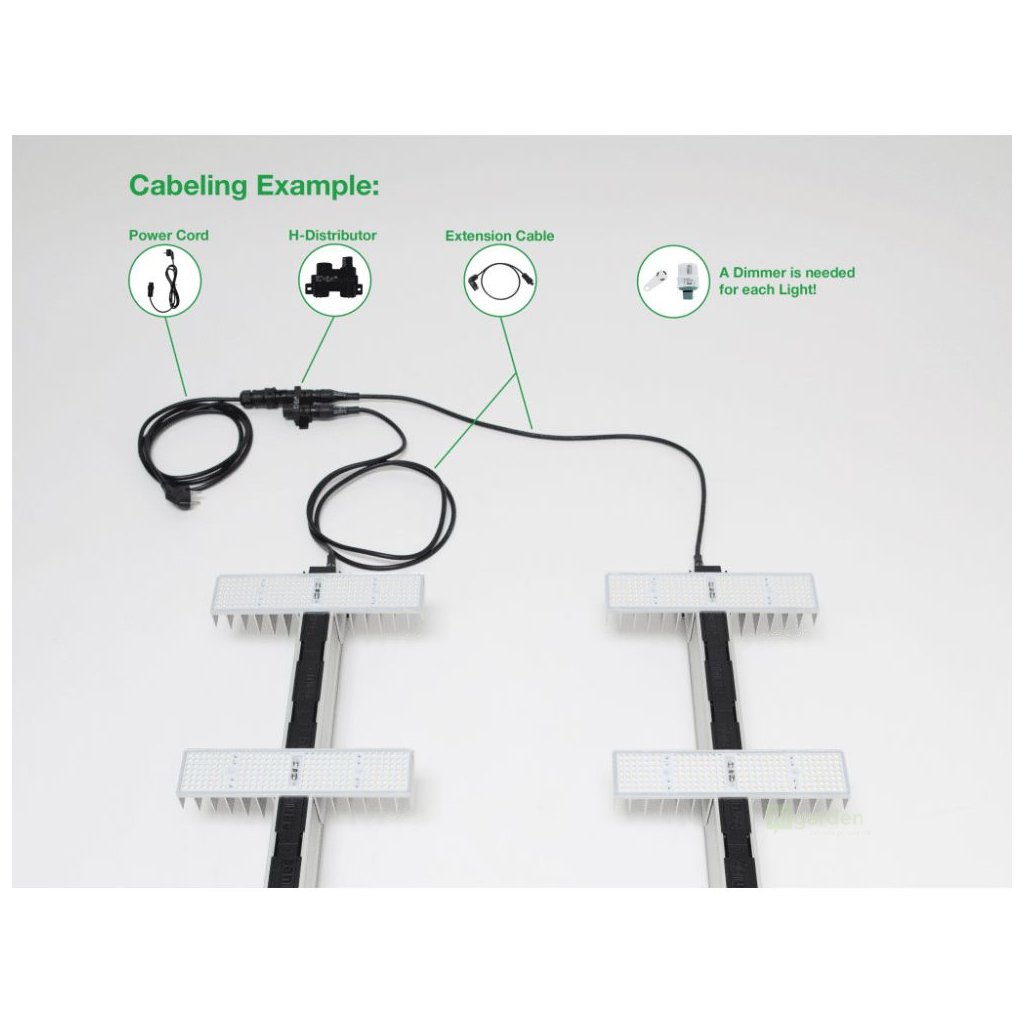

To connect multiple lights you will need:
Wieland Splitter connector, splitter for SANlight LED lights

ForindoorTwo grow lights are required for an 80x80 cm growing areaLEDSANlight EVO 3-80 with an input of 200W. The new V1.5 LED generation with improved secondary optics provides high efficiency and homogeneous light distribution to all demanding crops and plants.

Advantages of the improved Sanlight EVO V1.5 LED version
The PMMA secondary optics are perfectly adapted to the luminaire and direct the light to the plants. This ensures an even distribution of light in the growing space. In addition, the optics reduce losses due to stray light and protect the LEDs from dirt and chemicals.

For the EVO series, Osram's top-of-the-line UX3 High-Power red light is combined with Seoul's most efficient white LEDs for a perfect light spectrum with exceptional efficiency.

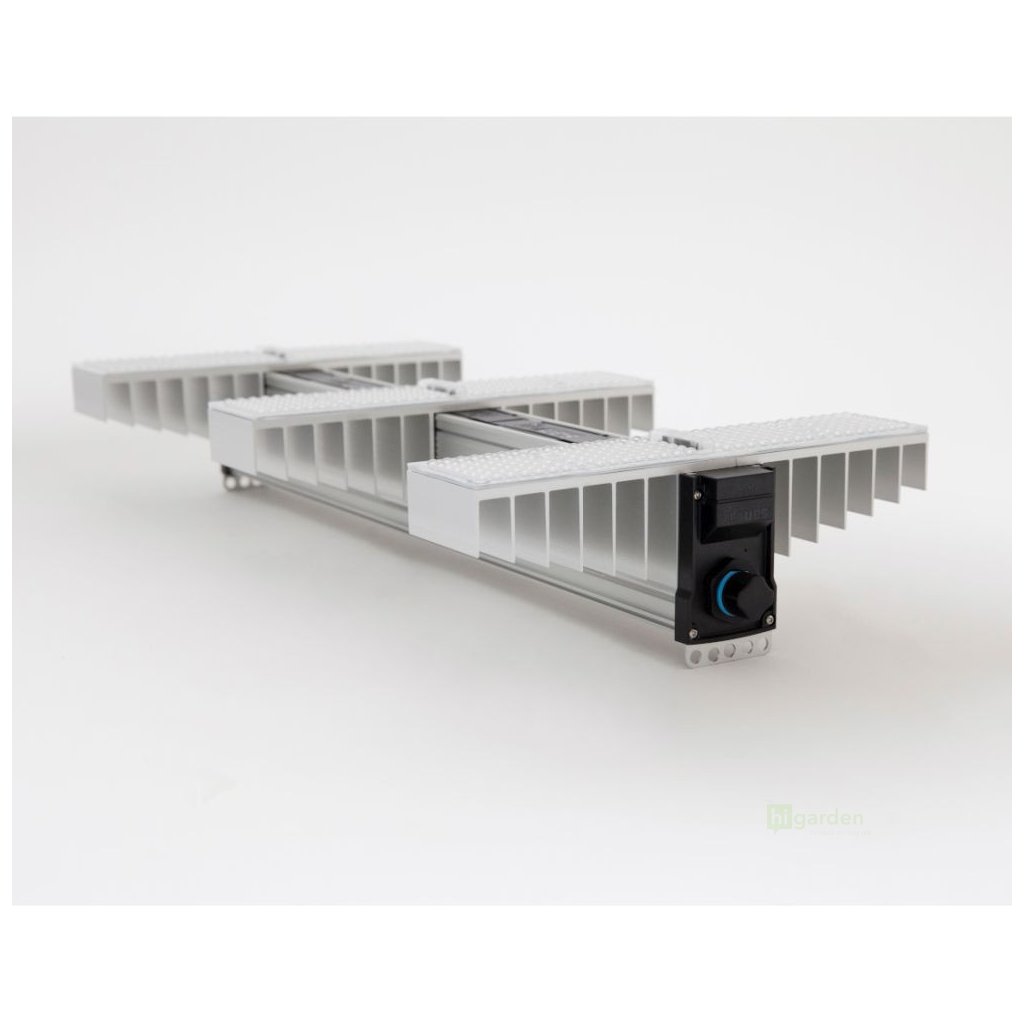

A disproportionate heat sink ensures the coolest LED chip temperatures. Passive cooling has a positive effect on the light output and the lifetime of the luminaire. Even when dirty, the core of your EVO luminaire remains cool and still just as efficient.

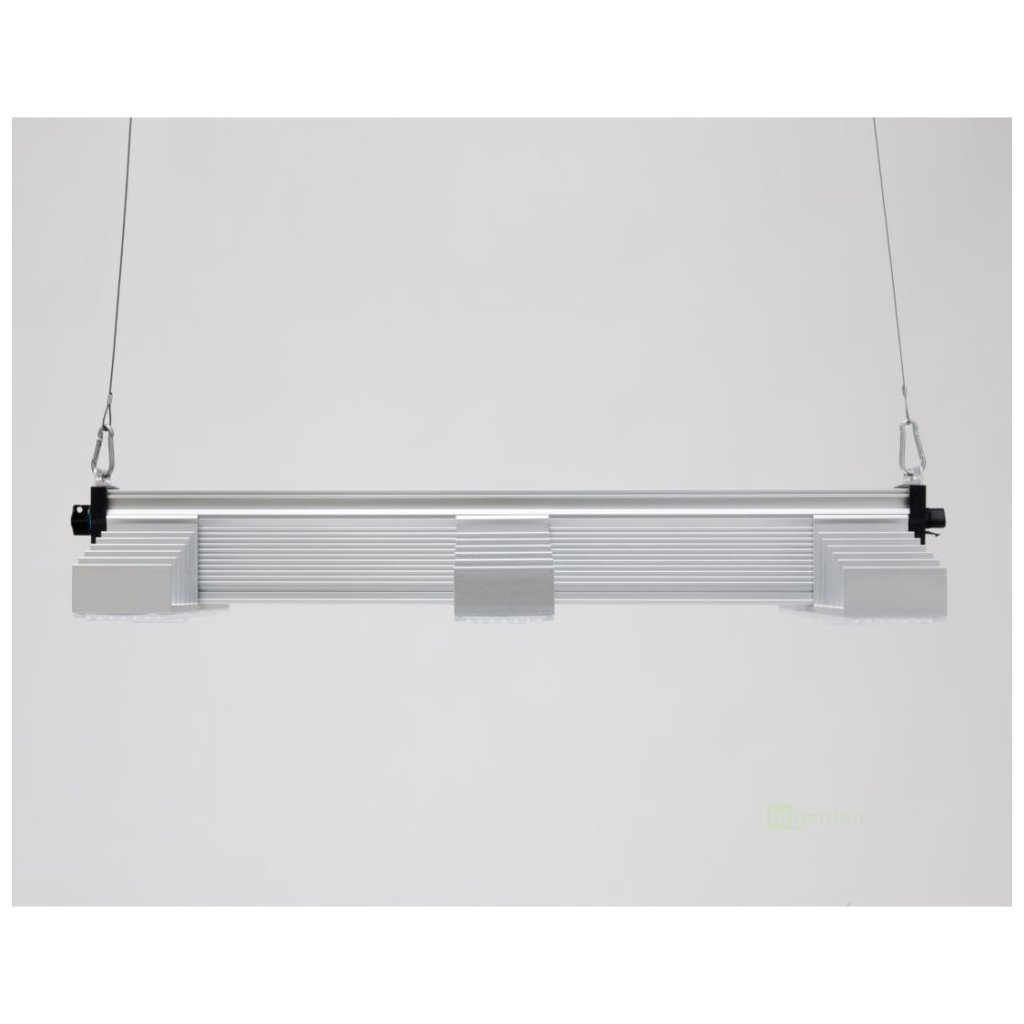

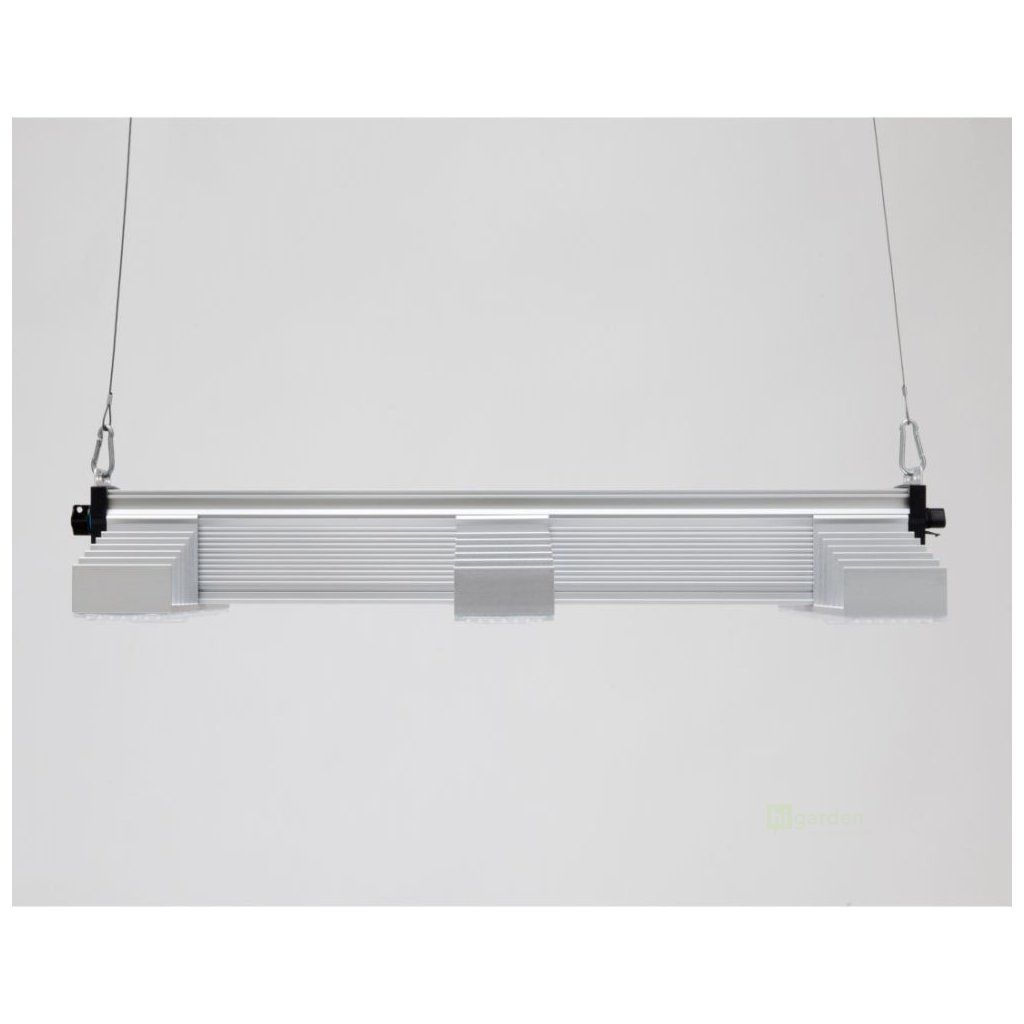

Sanlight LED luminaires are also popular among experienced indoor growers because they can be easily tilted horizontally or at any angle.

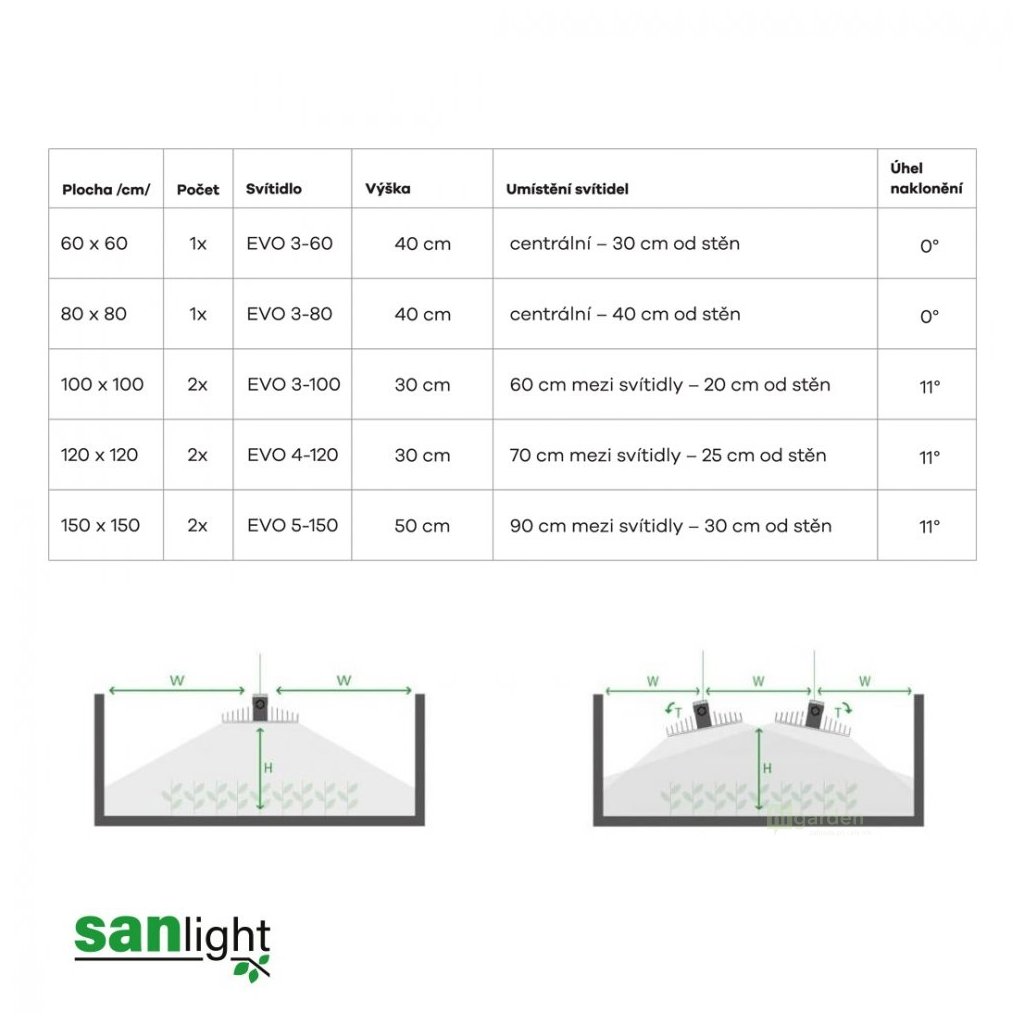

For indoor growing in grow boxes, it is recommended to hang the luminaires at a slight inclination (11°).
It is this inclination, in combination with our secondary optics, that ensures a homogeneous and diffuse distribution of light in the growing space.
In large open spaces, losses to unshaded areas can be reduced by hanging the luminaire on the outermost eyelet (17° inclination).
Each luminaire of the EVO series has a 0-10 V interface to which different types of dimmers can be connected. You can choose between a SANlight magnetic dimmer, a dimmer SANlight Bluetooth or you can control the EVO luminaire with an external controller.
We will be happy to recommend the appropriate adapter cables.

All luminaires in the EVO series are IP65-rated and thus protected against dust and splashing or running water. In addition, the individual light modules of the EVO series are hermetically sealed against the outside world. The sensitive medium-power LEDs are sufficiently protected against chemicals such as cleaning agents or pest control agents. The connectors used also meet the same degree of protection.

Despite the increased wattage, the price is reduced at the fundamental comparative value of CZK/Watt.

Advantages of the new version:
- improved LEDs and light output
- despite the increased wattage, the price is reduced at the crucial comparative value of CZK/Watt

SANlight EVO 3-80 200W is dimmable:
-Bluetoothdimmerincludesphone app (must be purchased)
- 0-10Vcontroller(Gavita, Nanolux, Urban, etc.) + adapter (must be purchased)

Product details:
- power consumption 200W
- module efficiency (excluding power supply and secondary optics losses): >3 μmol/J
- system efficiency (including losses): 2.68-2.7 μmol/J
- recommended for 80x80 cm area
- improved chips

Specifications:
- Fixture length: 643 mm
- PPF photon flux (PAR): 545 μmol/s
- Wavelength: 400-780 nm
- Maximum RH humidity: 99%
- Recommended ambient temperature: 5-35 °C
- Input voltage range: 100-240/277 50/60 Hz
- Max. 0.9@220Vac
- IP65
- Radiation angle: 90-112°
- L90 lifetime: 90000 h
- Warranty: 3 years
- Weight: 3.8 kg
