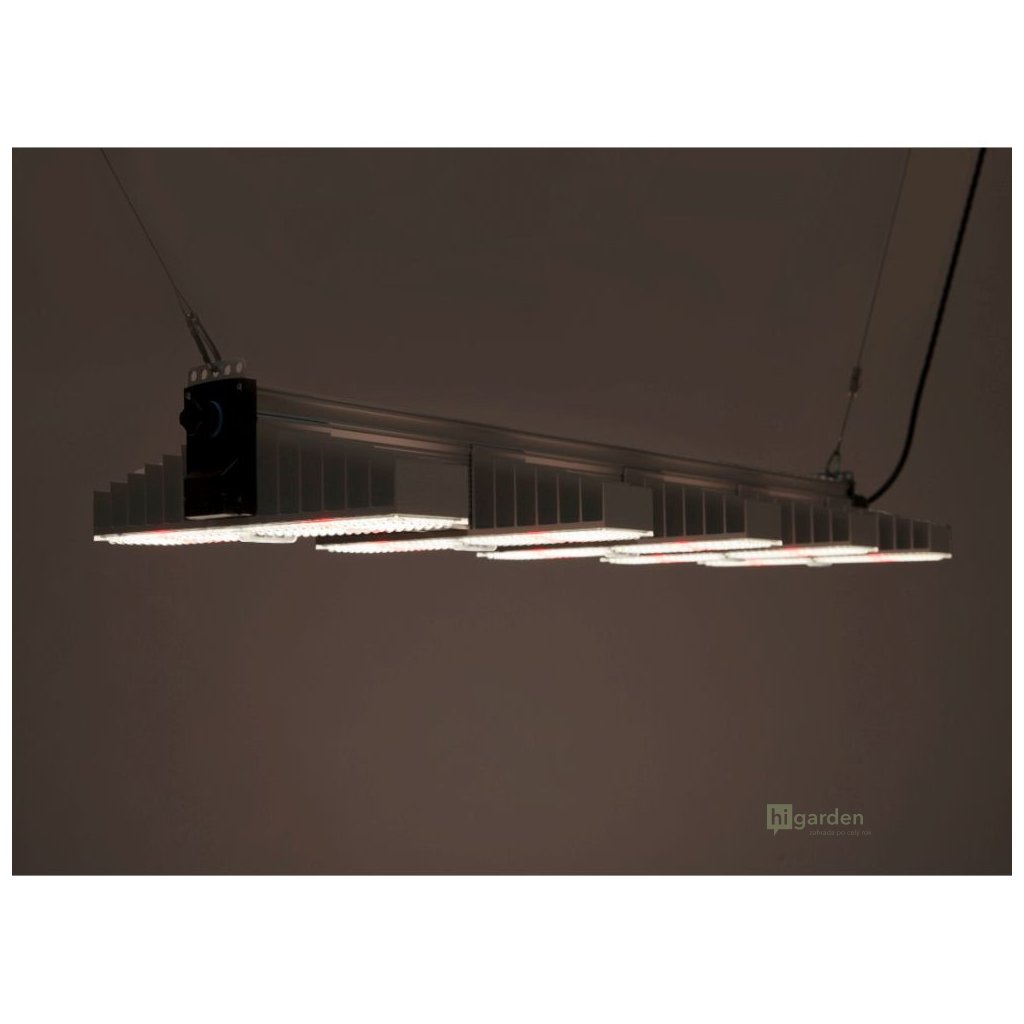

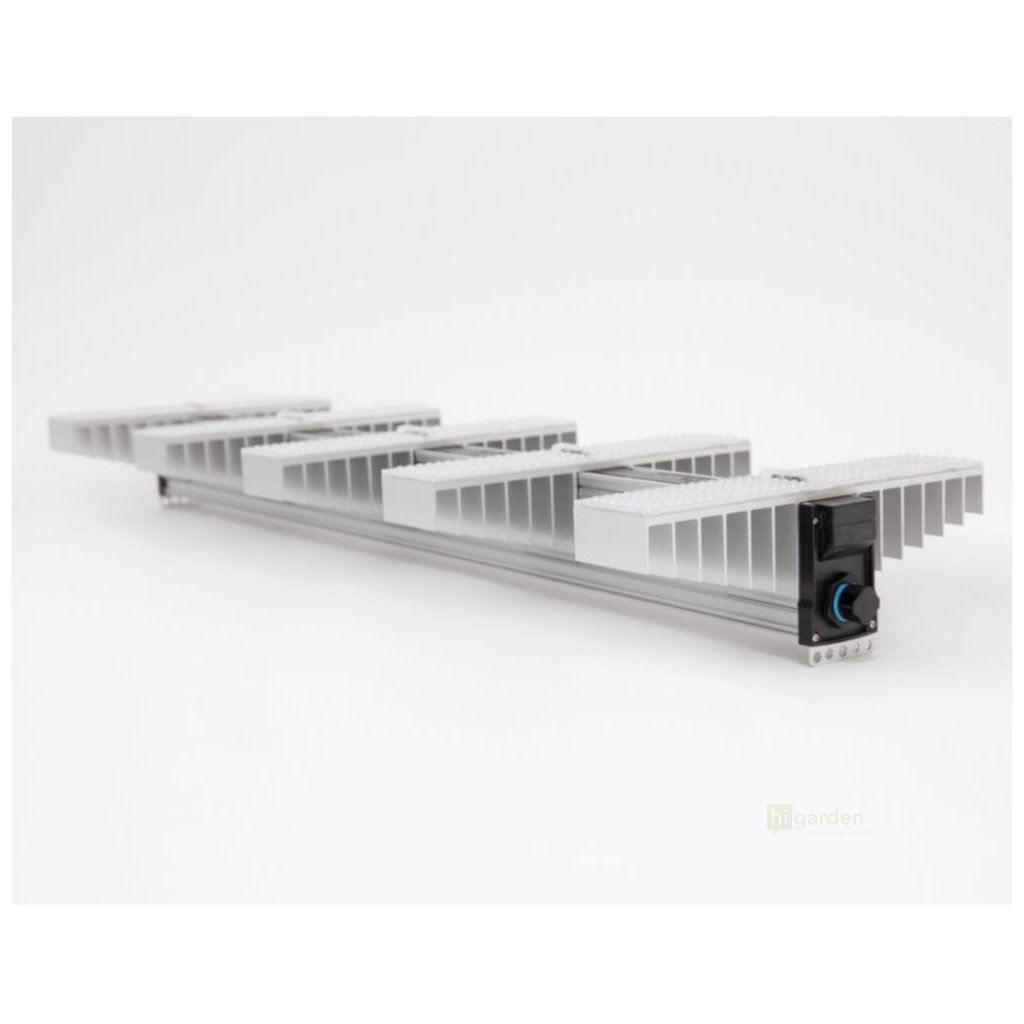

SANlight EVO 5-120 340W LED 3 µmol/J - V1.5

Product detailed description

Attention, the product is supplied without power cord, we recommend to choose one of the following:
SANlight power cord for EVO/Q-Series GEN2 lights
Angled SANlight power cable for EVO/Q-series lights

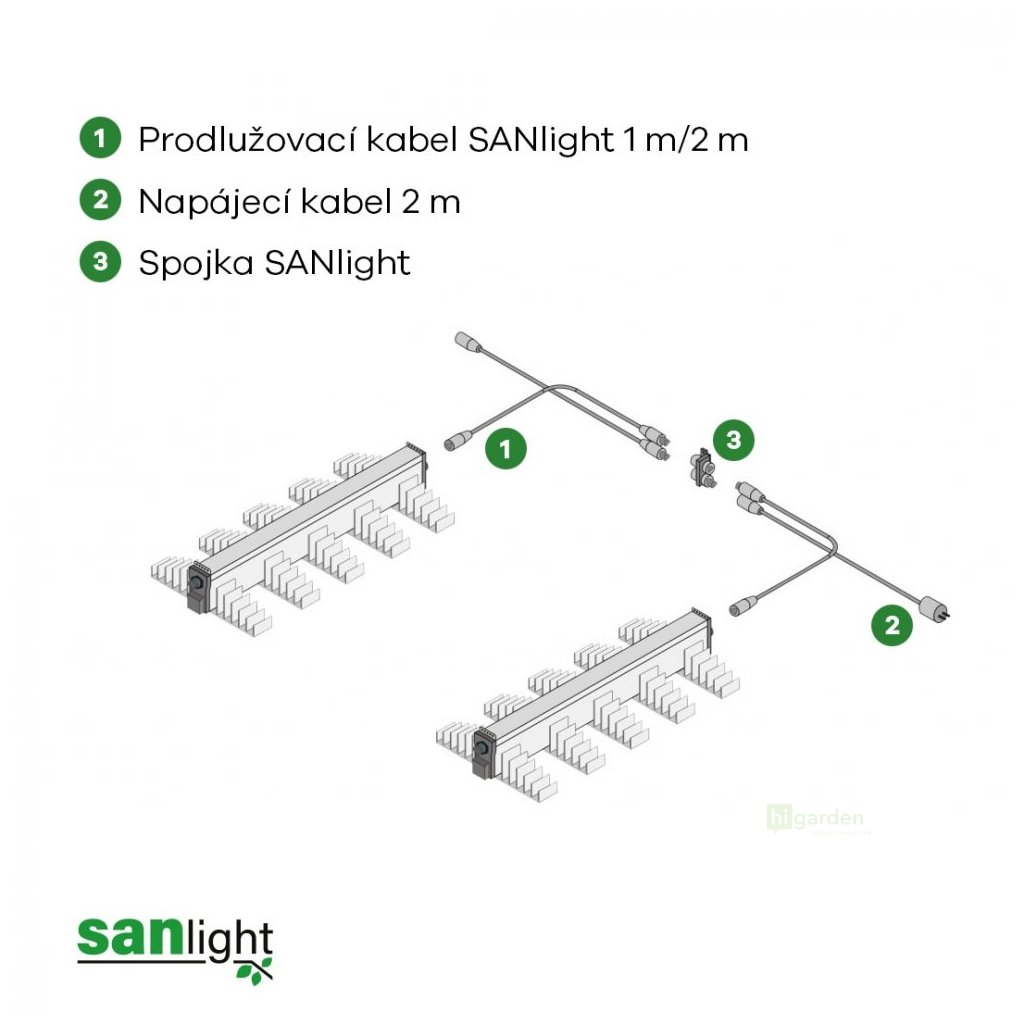

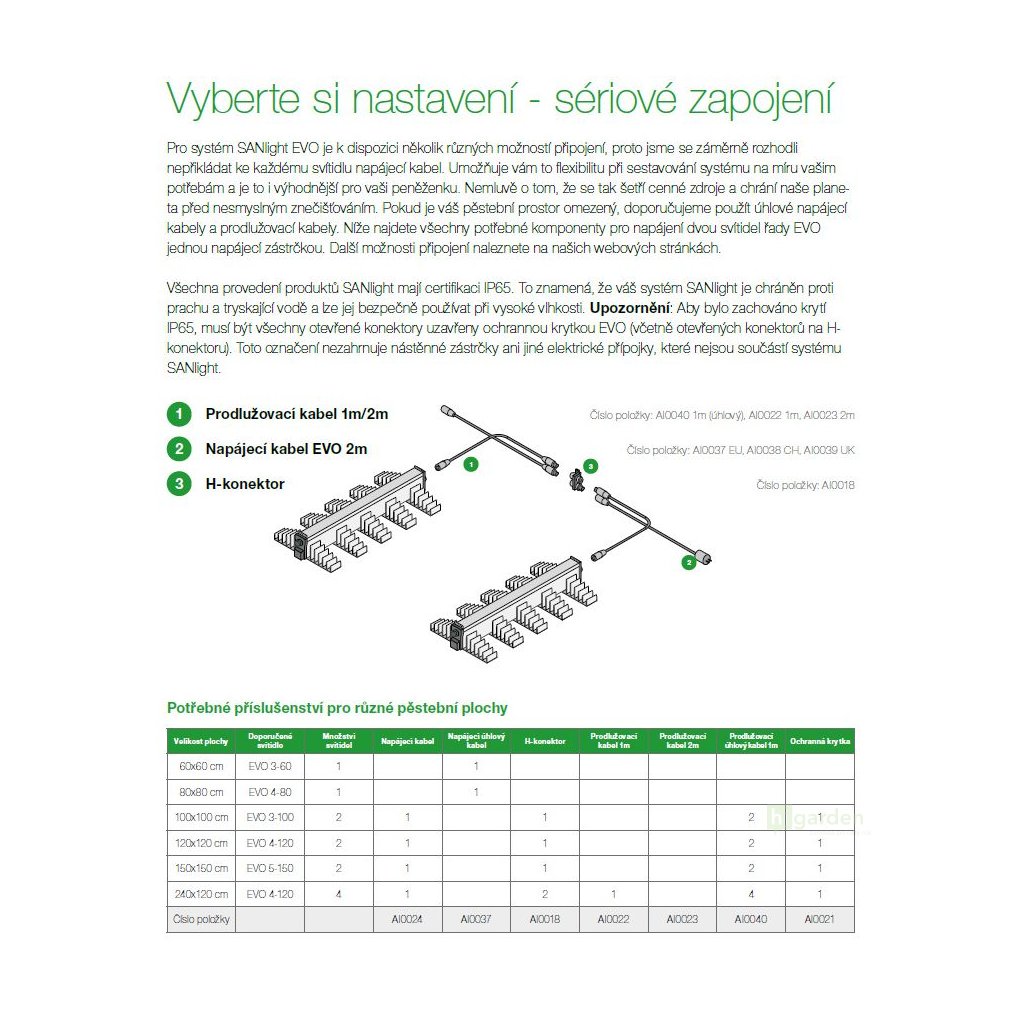

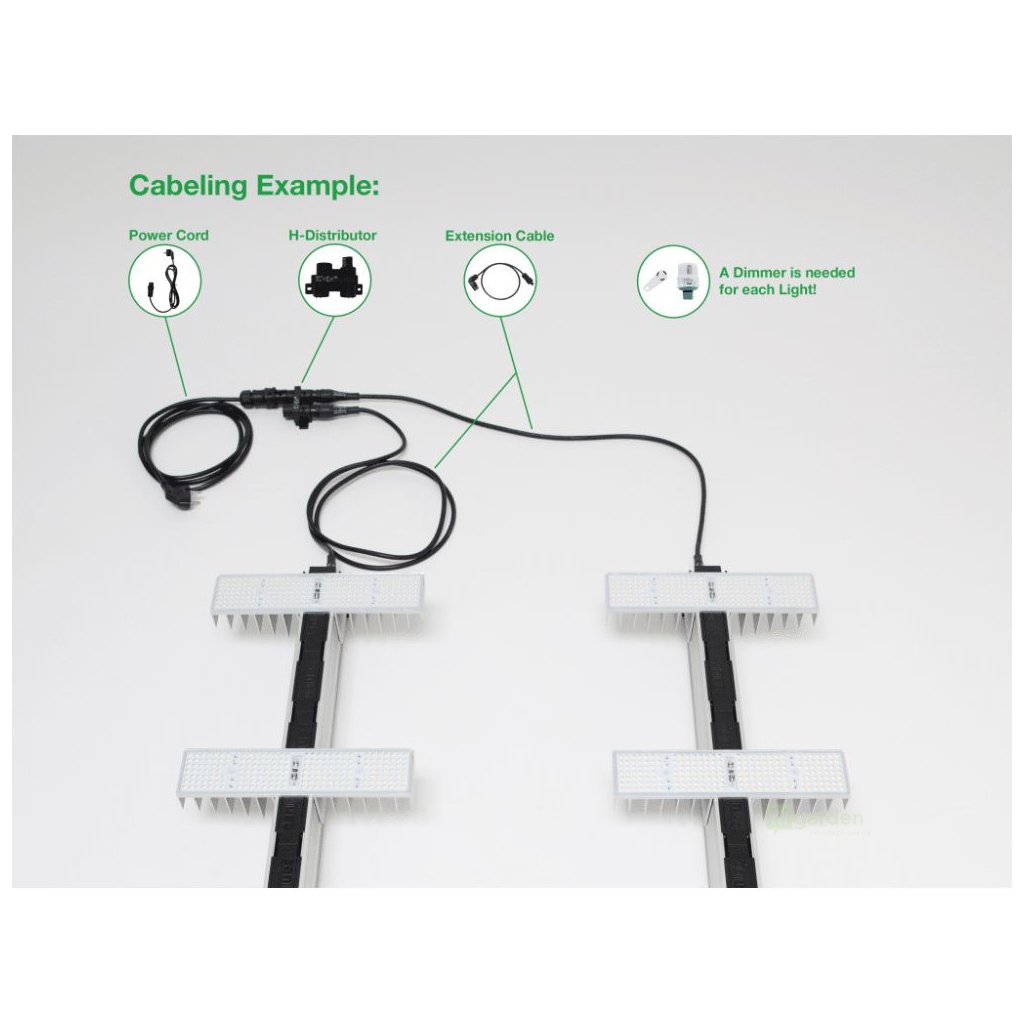

To connect multiple lights you will need:
Wieland Splitter connector, splitter for SANlight LED lights

For indoor growing on a 120x120 cm area, two SANlight EVO 5-120 grow LED luminaires with an input power of 340W are required. The new V1.5 LED generation with improved secondary optics provides high efficiency and homogeneous light distribution to all demanding crops and plants.

Advantages of the improved version of the Sanlight EVO V1.5 LED
The PMMA secondary optics are perfectly adapted to the luminaire and direct the light to the plants. This ensures an even distribution of light in the growing space. In addition, the optics reduce losses due to stray light and protect the LEDs from dirt and chemicals.

For the EVO series, the superior red lightOsram UX3 High-Poweris combined with Seoul's most efficient white LEDs for a perfect light spectrum with exceptional efficiency.

A disproportionate heat sink ensures the coolest LED chip temperatures. Passive cooling has a positive effect on the light output and the lifetime of the luminaire. Even when dirty, the core of your EVO luminaire remains cool and still just as efficient.

Sanlight LED luminaires are the most experiencedindoor

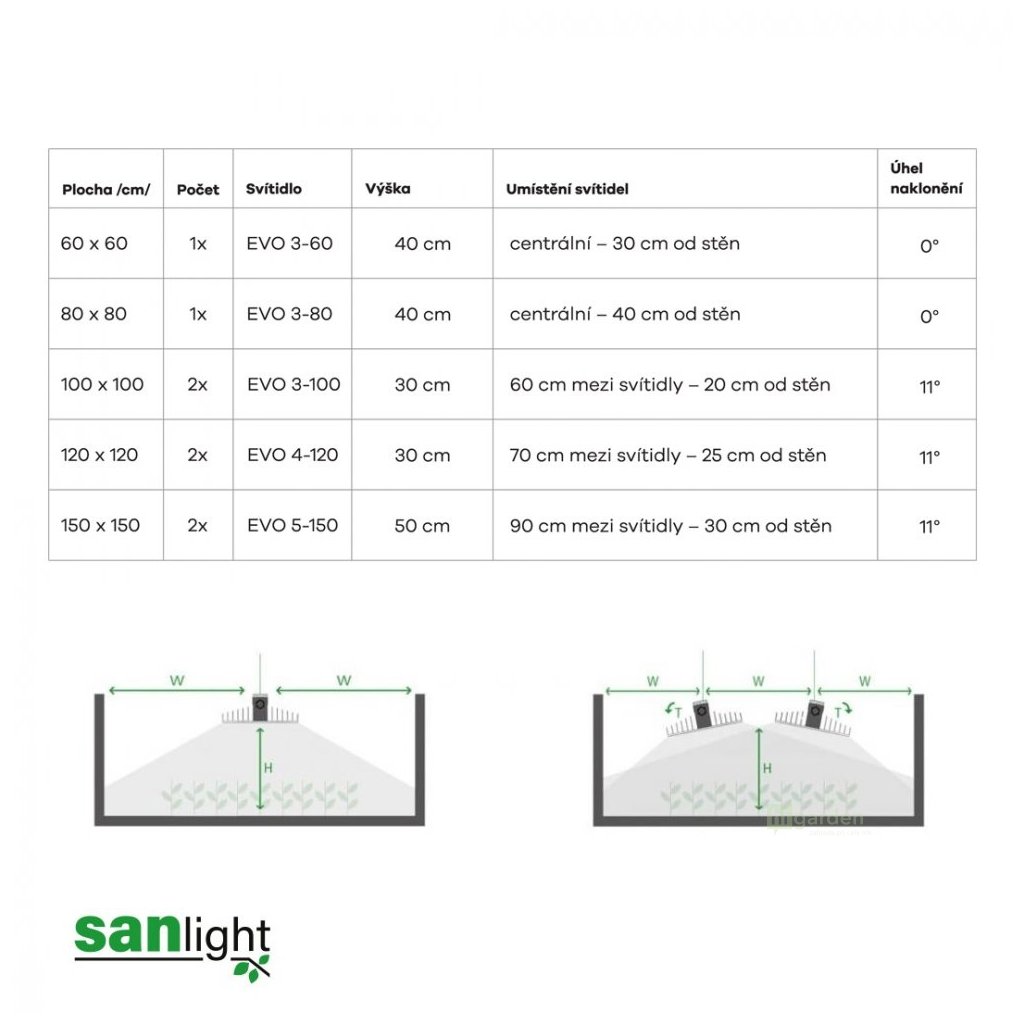

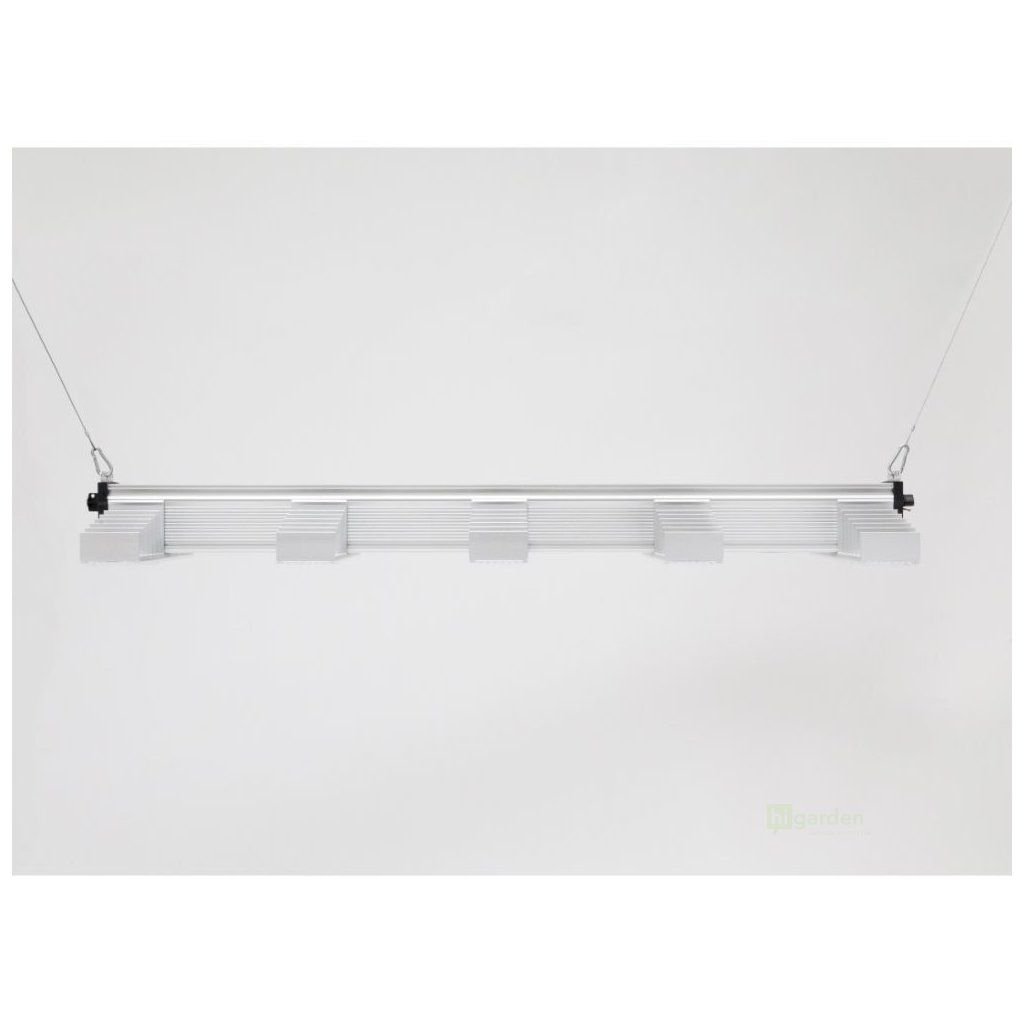

When growing indoors in grow boxes, it is recommended to hang the luminaires at a slight inclination (11°). It is the inclination that, in combination with our secondary optics, ensures a homogeneous and diffuse light distribution in the growing space.In large open spaces, losses to unshaded areas can be reduced by hanging the luminaire on the extreme eyelet (17° inclination). Each luminaire of the EVO series has a 0-10 V interface to which different types of dimmers can be connected. You can choose between


a SANlight magnetic dimmer, a dimmerSANlight Bluetoothor you can control the EVO luminaire with an external controller.
We will be happy to recommend the appropriate adapter cables.

All luminaires in the EVO series are IP65-rated and thus protected against dust and splashing or running water. In addition, the individual light modules of the EVO series are hermetically sealed against the outside world. The sensitive medium-power LEDs are sufficiently protected against chemicals such as cleaning agents or pest control agents. The connectors used also meet the same degree of protection.

In spite of the increased power consumption, there is a reduction in price at the fundamental comparative value of CZK/Watt.

Advantages of the new version:
- improved LEDs and light output
- despite the increased wattage, the price is reduced at the essential comparative value of CZK/Watt.

SANlight EVO 5-120 340W is dimmable:
-Bluetooth dimmerIncludes phone app (must be purchased)
- 0-10Vcontroller(Gavita, Nanolux, Urban, etc.) + adapter (must be purchased

Product details:
- power consumption 340W
- module efficiency (without power supply and secondary optics losses): >3 μmol/J
- system efficiency (including losses): 2,68-2,7 μmol/J

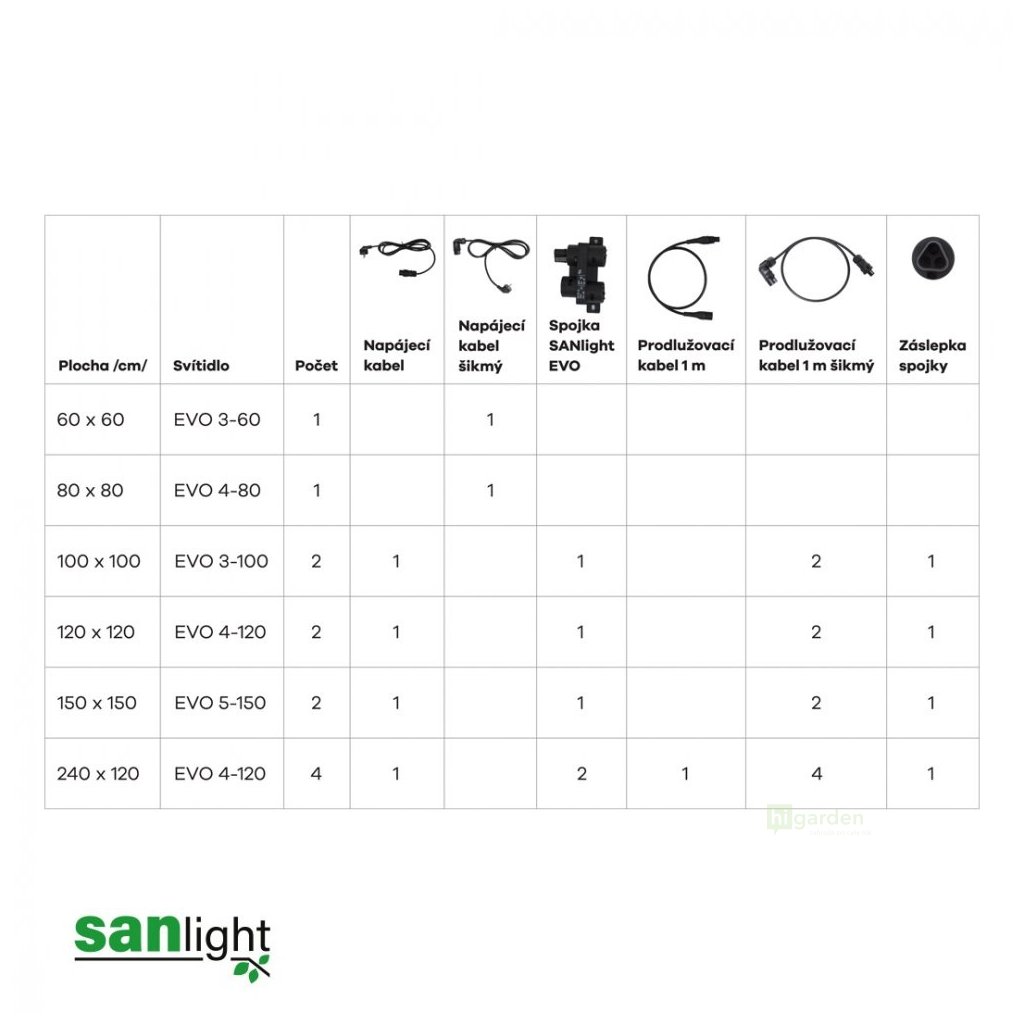

- 1x luminaire recommended for 60x120cm area
- 2x luminaire recommended for 120x120cm area
- improved chips

Specifications:
- Fixture length: 1018 mm
- PPF photon flux (PAR): 915 μmol/s
- Wavelength: 400-780 nm
- Max RH humidity: 99%
- Recommended ambient temperature: 5-35 °C
- Input voltage range: 100-240/277 50/60 Hz
- Max. 0.9@220Vac
- IP65
- Radiation angle: 90-112°
- L90 lifetime: 90000 h
- Warranty: 3 years
- Weight: 5.9 kg
