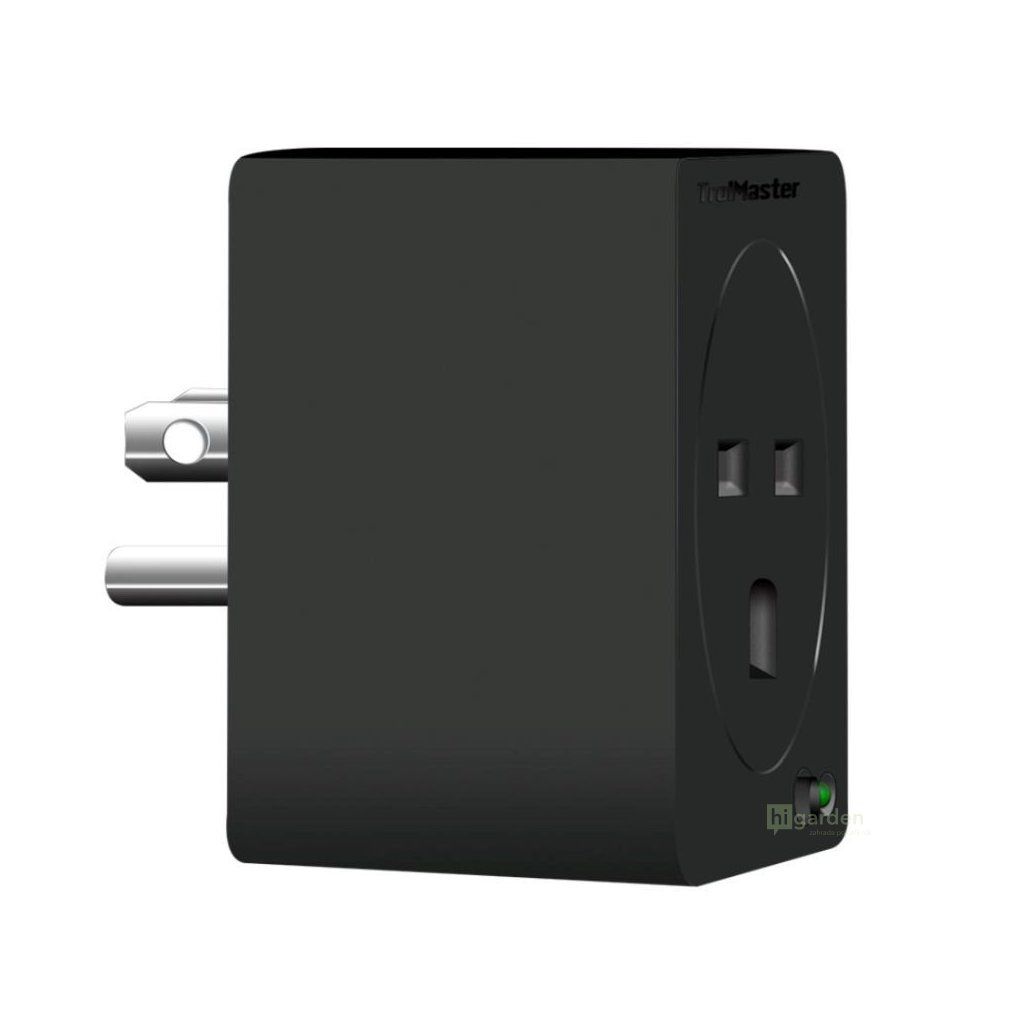

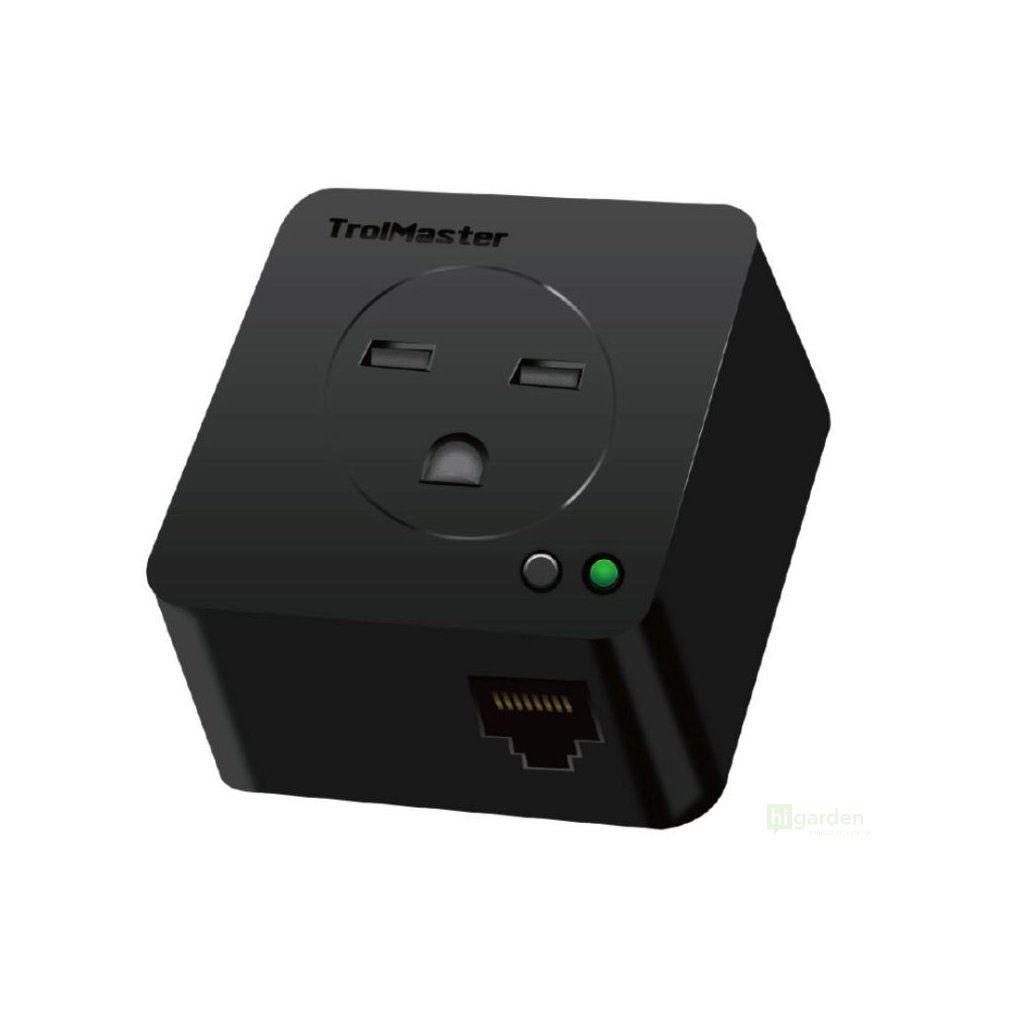

Trolmaster 240V Humidity Device Station (DSH-2E)

The picture is illustrative. The product is supplied in the EU version including an adapter for seamless connection to the Czech network.

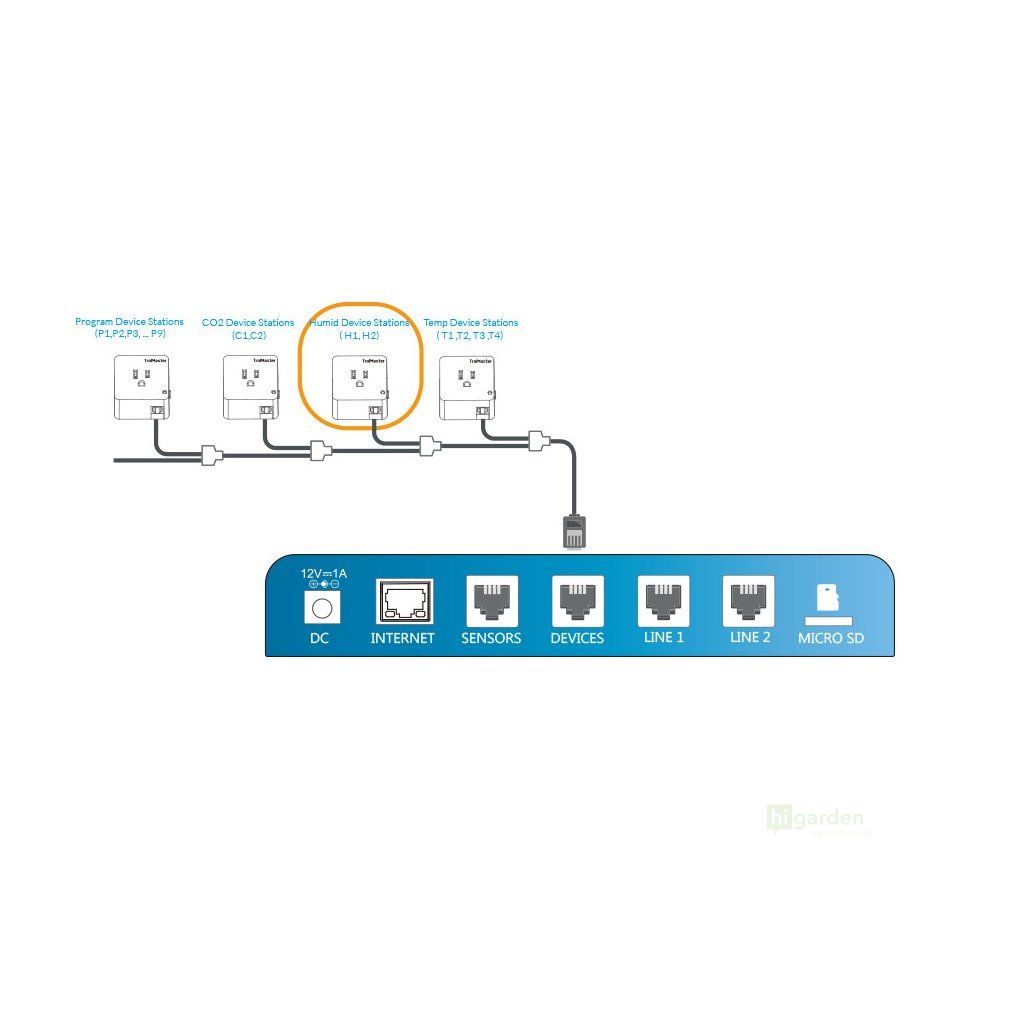

The TrolMaster DSH-2 humidity/device control modules allow the user to easily connect and control standard humidification or dehumidification equipment to the Hydro-X. This module allows control of any humidification or dehumidification device to world standard voltage (100-240 VAC, 50/60 Hz), up to 10 amps.

Use with dehumidifiers that draw less than 7 amps to avoid current overload.

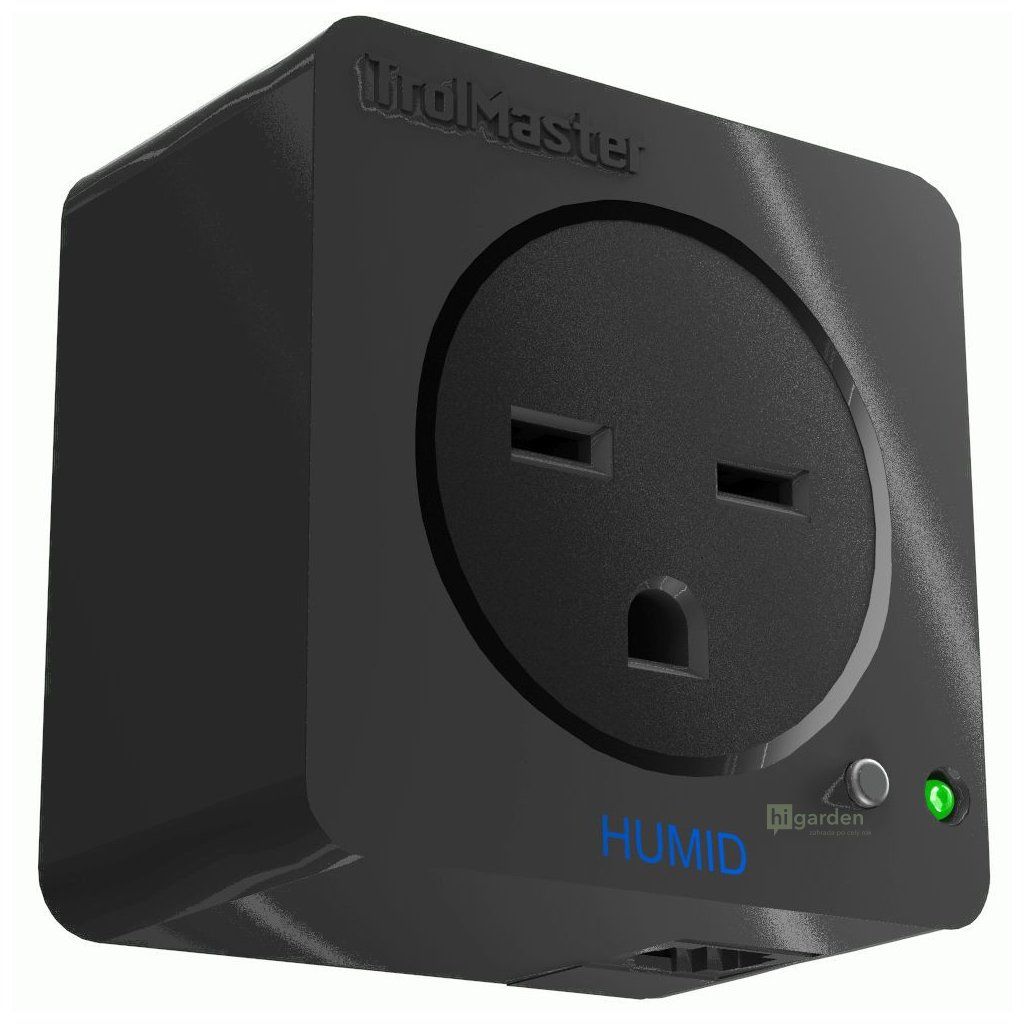

LED indication:
- Flashes green FAST: If the LED flashes fast, it means that the module has not been addressed to the control unit OR that the module does not have a good connection to the control unit.
- Press the small button on the module to address/connect the module when it is first installed.
SLOW BLINKING GREEN LED: If you see a slowly blinking green LED, it means that the module is addressed and connected to the control unit and the module is currently powered off.
- BLINKING GREEN: If you see the LED steady on (not blinking), it means the modules are addressed, connected and currently powered on.
- Flashing RED: If you see the LED turn to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from power.
- By pressing and holding the button on the DSH-2 module, users can manually overload and power on/off the module.

Package includes:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter

Technical Specifications:
- input voltage: 240V AC, 50/60 Hz
- output current: 10A
- output voltage: 100-240V AC, 50/60 Hz
- operating temperature: 0-50 °C
- operating humidity: < 90% RH
