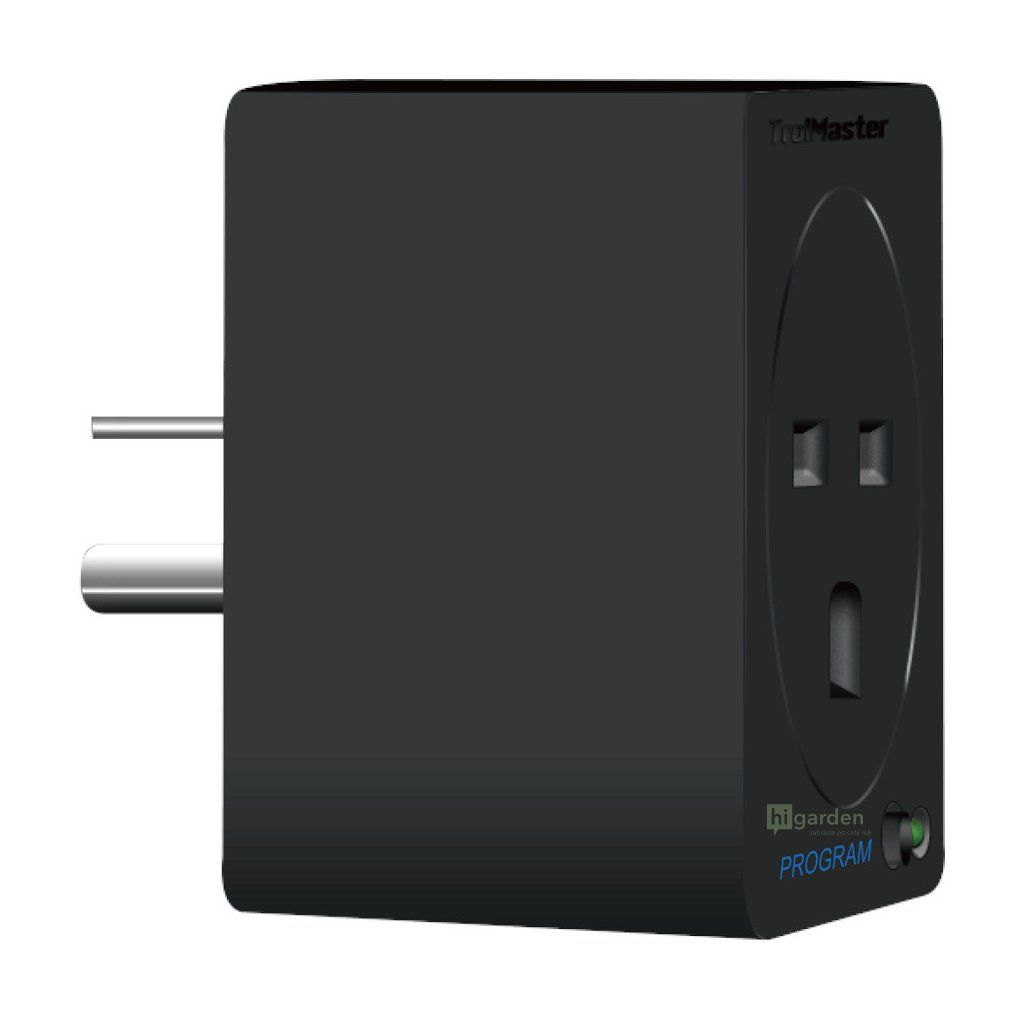

Trolmaster 240V Timer Program Device Station (DSP-2E)

The picture is illustrative. The product comes with an adapter for seamless connection to the Czech network.

The TrolMaster DSP-2 programming device module (timer module) functions as a multifunction timer. The DSP-1 module allows the user to easily connect any device to the Hydro-x system that needs to be controlled using the TIME function. The DSP-2 module allows any device to be controlled according to world standard voltage (100-240 VAC, 50/60 Hz), up to 10 amps.

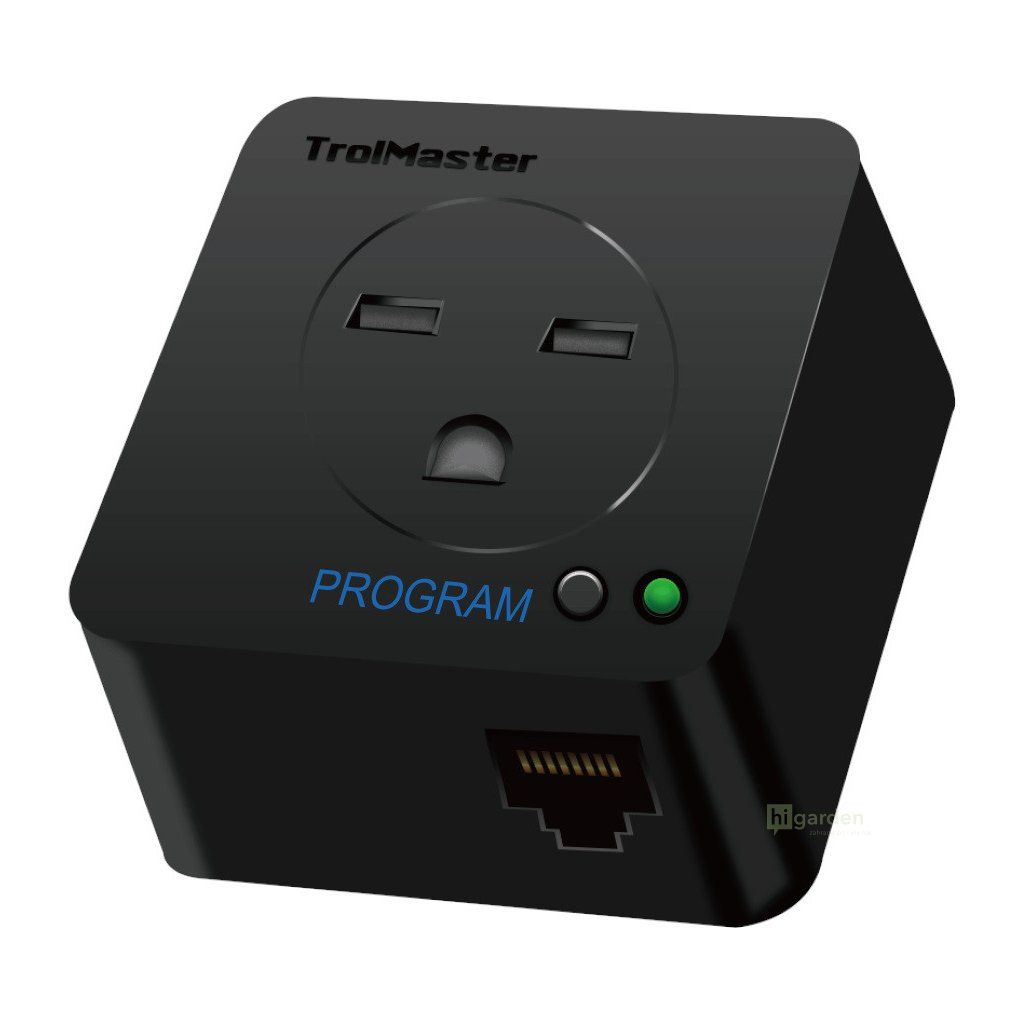

LED signaling:
- Flashing green FAST: If you see the LED flashing fast, it means that the module has not been addressed to the controller OR that the module does not have a good connection to the controller.
- Press the small button on the module to address/connect the module when it is first installed.
- SLOW: If you see the green LED flashing slowly, it means that the module is addressed and connected to the controller and the module is currently off.
BLINKING GREEN: If you see the LED steady (not flashing), it means the modules are addressed, connected and currently powered on.
- Flashing RED: If you see the LED turn to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from power.
- By pressing and holding the button on the DSP-2 module, users can manually reconfigure and power on/off the module.

Technical Specifications:
- input voltage: 240V AC, 50/60 Hz
- output current: 10A
- output voltage: 100-240V AC, 50/60 Hz
- operating temperature: 0-50 °C
- operating humidity: < 90% RH
