Trolmaster Carbon-X Controller & Cable set (CDA-1)

The TrolMaster Carbon-X system provides critical CO2 level monitoring for up to 13 separate zones/rooms. The system can have both high level alerts (up to 30,000 ppm) and low level alerts (5,000 ppm). Both high and low level limits are user adjustable to meet local regulations for supplemental indoor CO2 use.

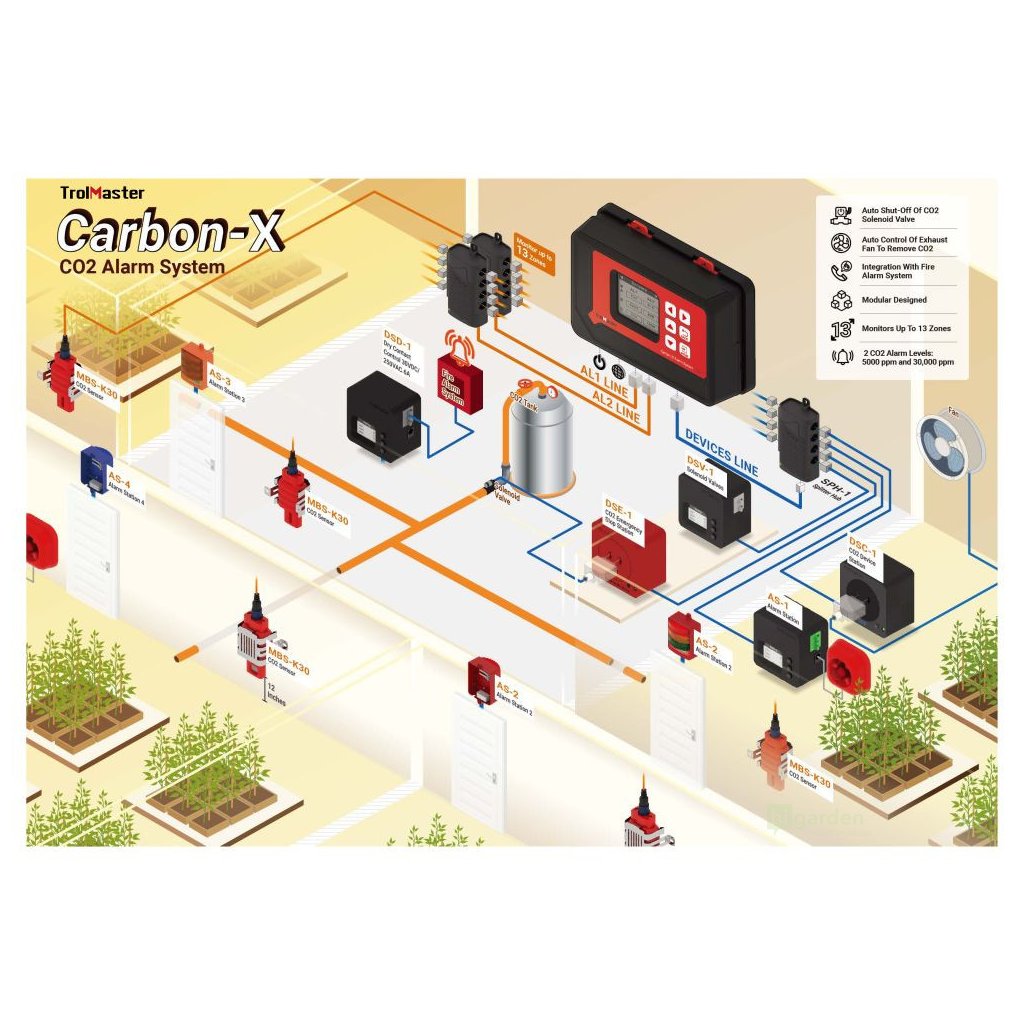

The Carbon-X system can also control a variety of devices such as fans, dampers, CO2 master valves, as well as send a signal to the fire department via interfacing with the fire/alarm panel in the building. Automatic CO2 shutdown is accomplished by wiring the main CO2 solenoid in the building in series with one of the system's control modules. The settings of each of the devices connected to the system can be user-selectable and easily customized.

Each room monitored by the Carbon-X system will also require an audio-visual alarm to alert staff to the CO2 level in the space and whether or not it is safe to move around the space.

The TrolMaster app can be used to remotely monitor Carbon-X equipment and also receive user alerts/notifications if high CO2 levels are detected.

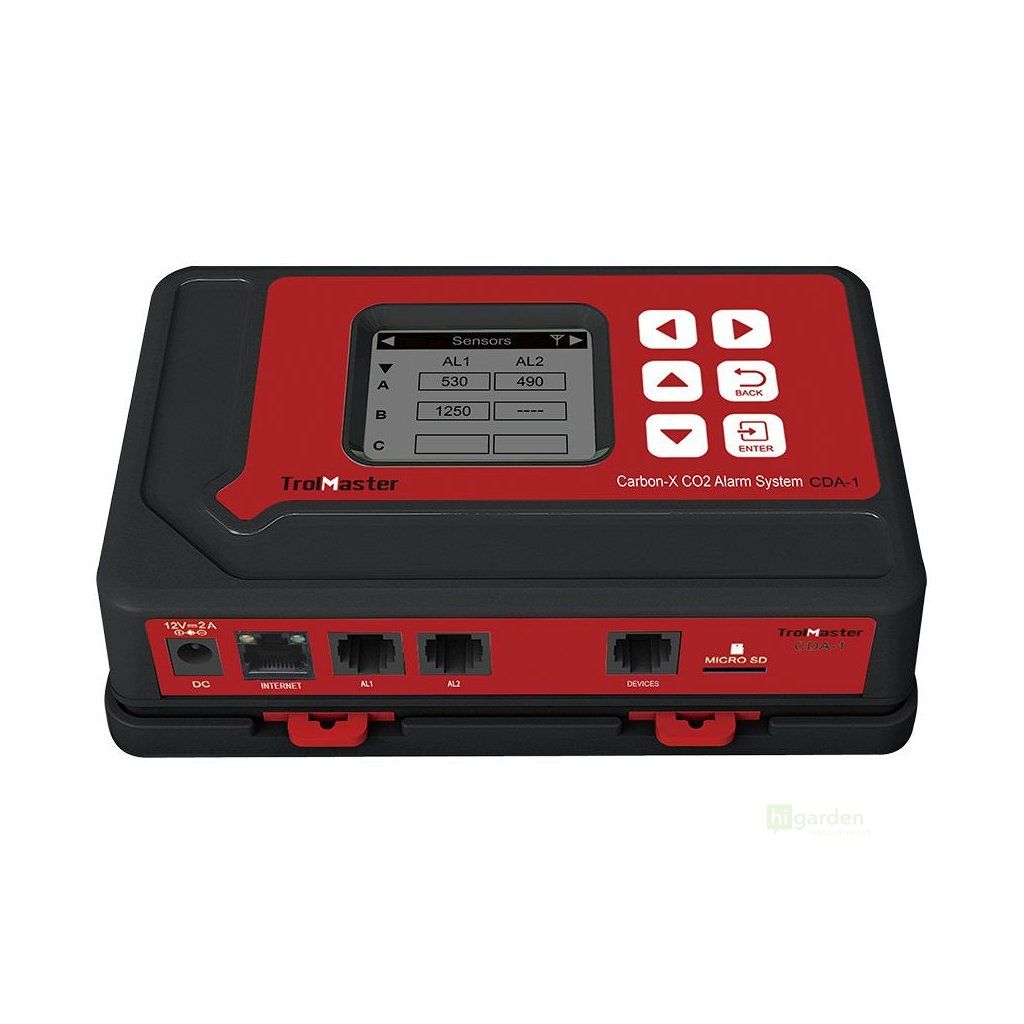

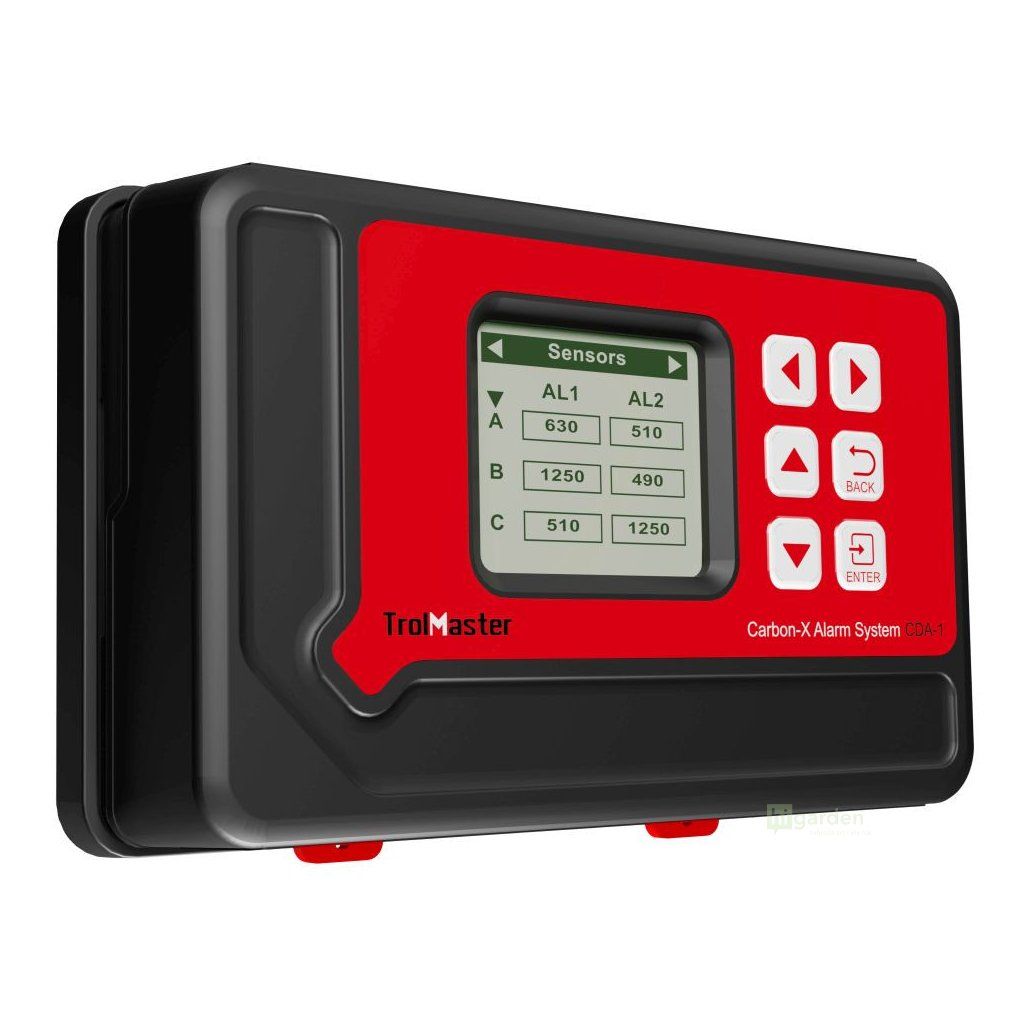

The CDA-1 is the brains of the system.

• Multiple zones
• Customizable
• Plug and Play
• Connection to the app

Package includes:

• 1x CO2 Alarm System(CDA-1)
• 2x16ft RJ12 Cable
• 1x12V Power Adapter

Technical Specifications:

• Dimensions: 275x164x62 mm
• Weight: 1.08 kg
