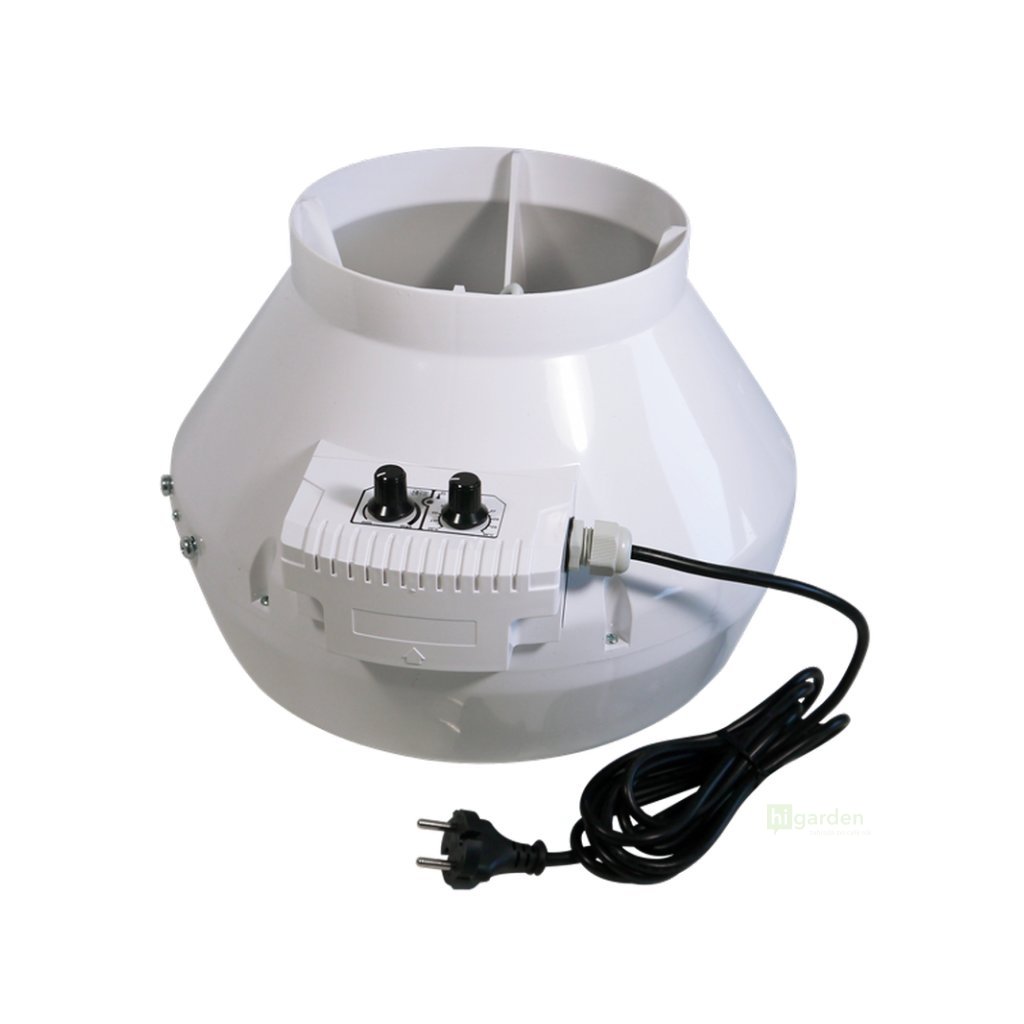

Ventilator VK 200 U, 780m3/h with thermostat

Code: 8871
Brand: Vents
€156,48
Ventilátor VK 200 U, 780m3/h s termostatem Cover
€156,48 €156,09 €129 excl. VAT
In Stock
Delivery offer

Radial ducted fan VK 200 U, 780m3/h is designed for ventilation of medium and larger non-residential spaces. The maintenance-free fan made of ABS plastic impresses with its decent characteristics and quiet operation. The built-in thermostat simplifies the ventilation of your rooms. You can manually set the desired temperature directly on the fan. If the temperature rises by 2 degrees, the motor will start working faster. When the room cools down, it switches back to a lower speed.

Detailed information

Product detailed description

Advantages of the VK 200 U, 780m3/h

  • Ideal choice for extracting air from rooms with ducts with higher pressure drop
  • with built-in thermostat for temperature control
  • suitable for ventilation of garages, workshops, shops, growing rooms, offices, etc.
  • Maintenance-free ball bearing guarantees reliable and quiet motor performance
  • single-phase asynchronous AC motor with external rotor
  • reliable ABS plastic is corrosion-resistant and allows operation in wet areas
  • wall or ceiling mounting at any angle
  • radial blades, low noise level


Parameters of the fan VK 200 U, with thermostat
- for flexible and rigid ducts with a diameter of 200 mm
- max. air capacity (power): 780m3/h
- power consumption (power): 107 W
- pressure: 360 Pa
- 2660 rpm
- sound pressure: 48 dbA
- weight: 4.3 kg
- optimum operating temperature: -25/+55 degrees
- motor overheating protection
- operation up to 40,000 hours or more
- recommended for ducts with a maximum length of 25 m
- protection: IP X4

The VK 200 U plastic duct fan with an output of 780m3/h is supplied with attachments. The speed can only be controlled by an external controller (thyristor or autotransdormator). Follow the Czech instructions included in the package for installation, start-up and handling of the fan. Wiring and installation should be done exactly according to the manual and the included diagram.

This VK manual will help you to use the fan.
Here you can find the catalogue sheet.

Additional parameters

Category: Ventilation
Flange (mm): 200
Speed Control: Smooth speed regulation and thermostat
Technology: Radial
Airflow (m3/h): 780
