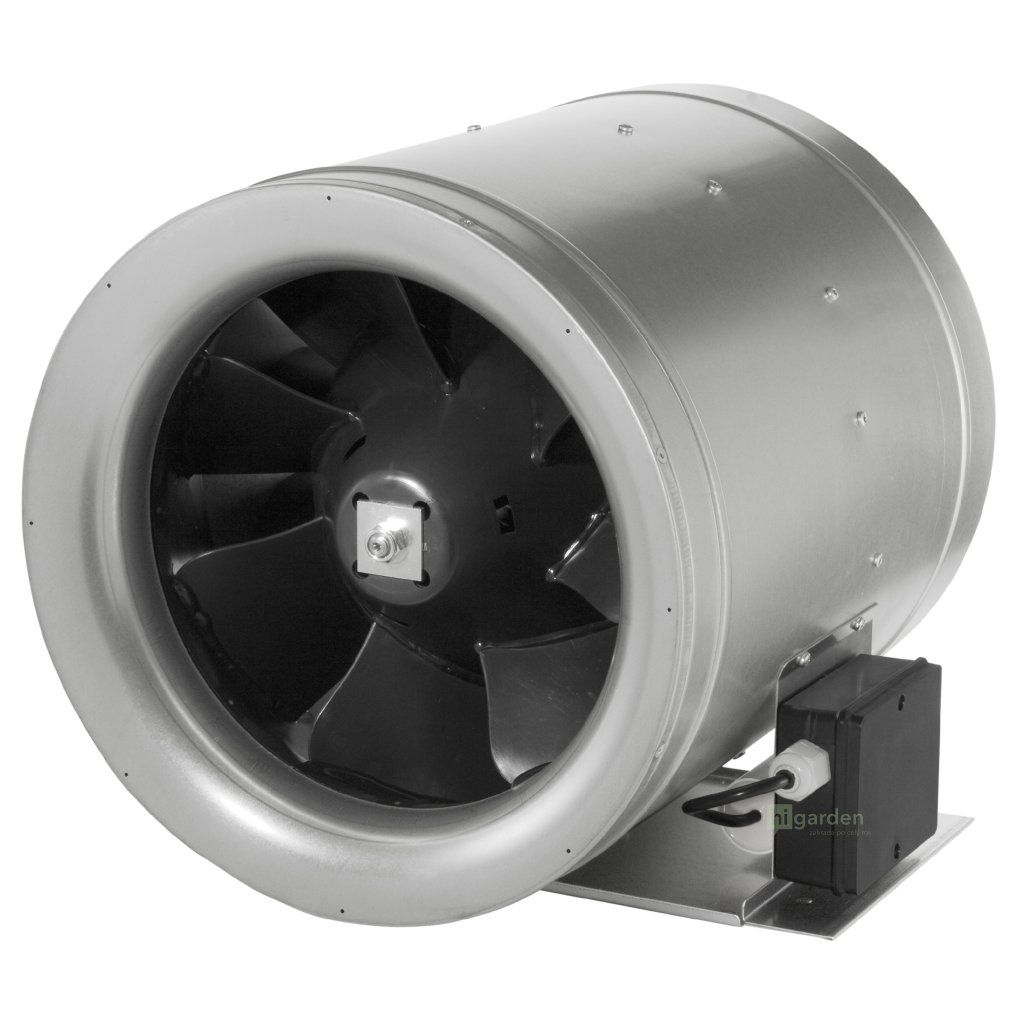

RUCK ETALINE / MAX-Fan, 4940 m3/h, 355 mm
Code: 5682Product detailed description
Max Fan is a unique German quality diagonal tubular fan designed to be efficient, powerful and less noisy. The stator/rotor system makes the Max Fan the most efficient fan on the market, taking into account both air performance and energy consumption. The rotor pushes the air into a vortex, while the stator transforms this vortex into a uniform stream of air that prevents pressure loss, noise and unnecessary energy consumption. The efficiency of the Max fan is 50%, higher than conventional single-propeller fans available on the market.
The Max fan is controlled by a voltage regulator and, to protect the motor, is equipped with a thermal switch that shuts down the motor if it reaches an unsafe operating temperature. In addition, the Max Fan comes with mounting brackets for ease of use. It is suitable for medium to large spaces. The fan does not need to be boxed.
The maximum operating air temperature is 45 °C.
For this fan we recommend the Malapa Regulator with a maximum power input of 900 W.

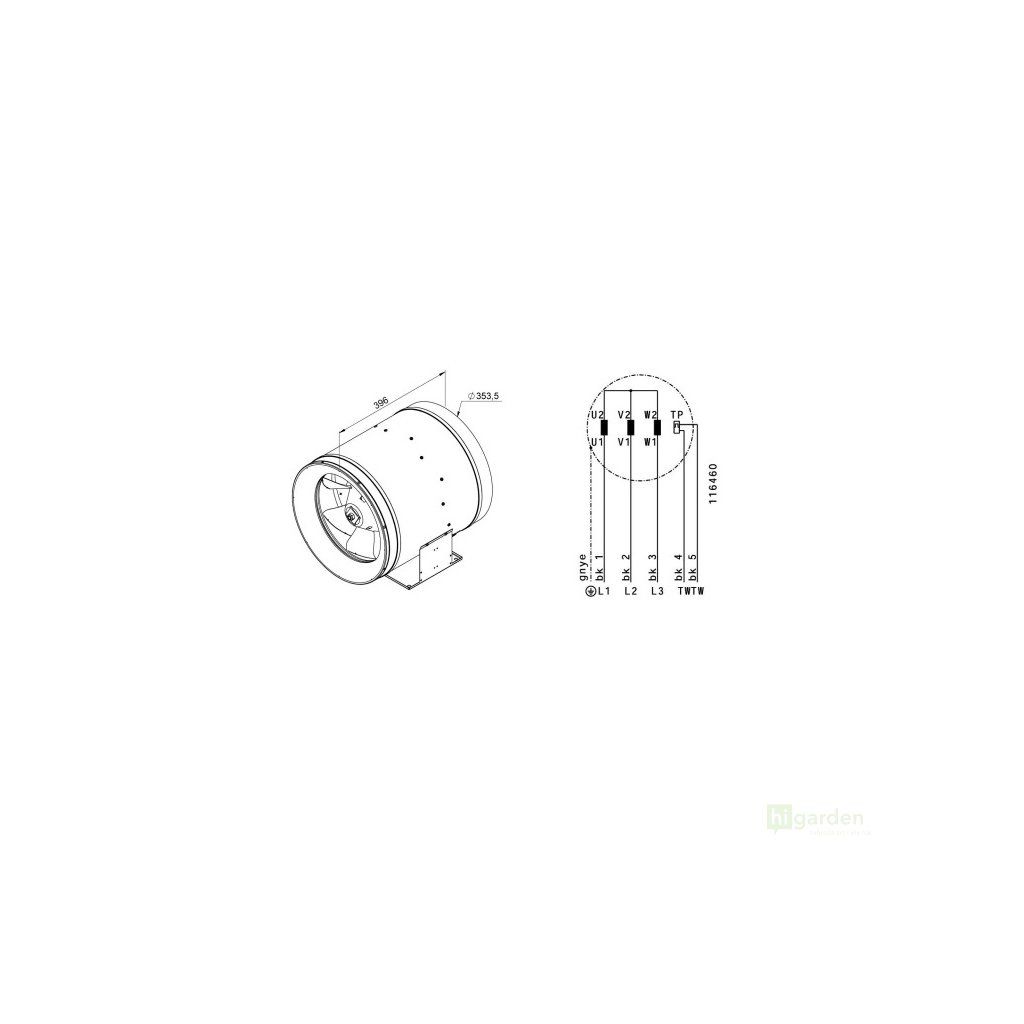

Here you can find the technical specifications of the Max-Fan 355/4940.
Additional parameters
| Category: | Ventilators |
|---|---|
| Flange (mm): | 355 |
| Speed Control: | No regulation |
| Technology: | Axial |
| Airflow (m3/h): | 4940 |
| PFHGX: | Levné, Nejprodávanější, Doporučené, Kvalitní, Značkové, Základní |
| Power/Airflow: | 4940 m3/h |
| Power consumption: | 957 W |
| Current: | 5,4 A |
| Voltage: | 230 V |
