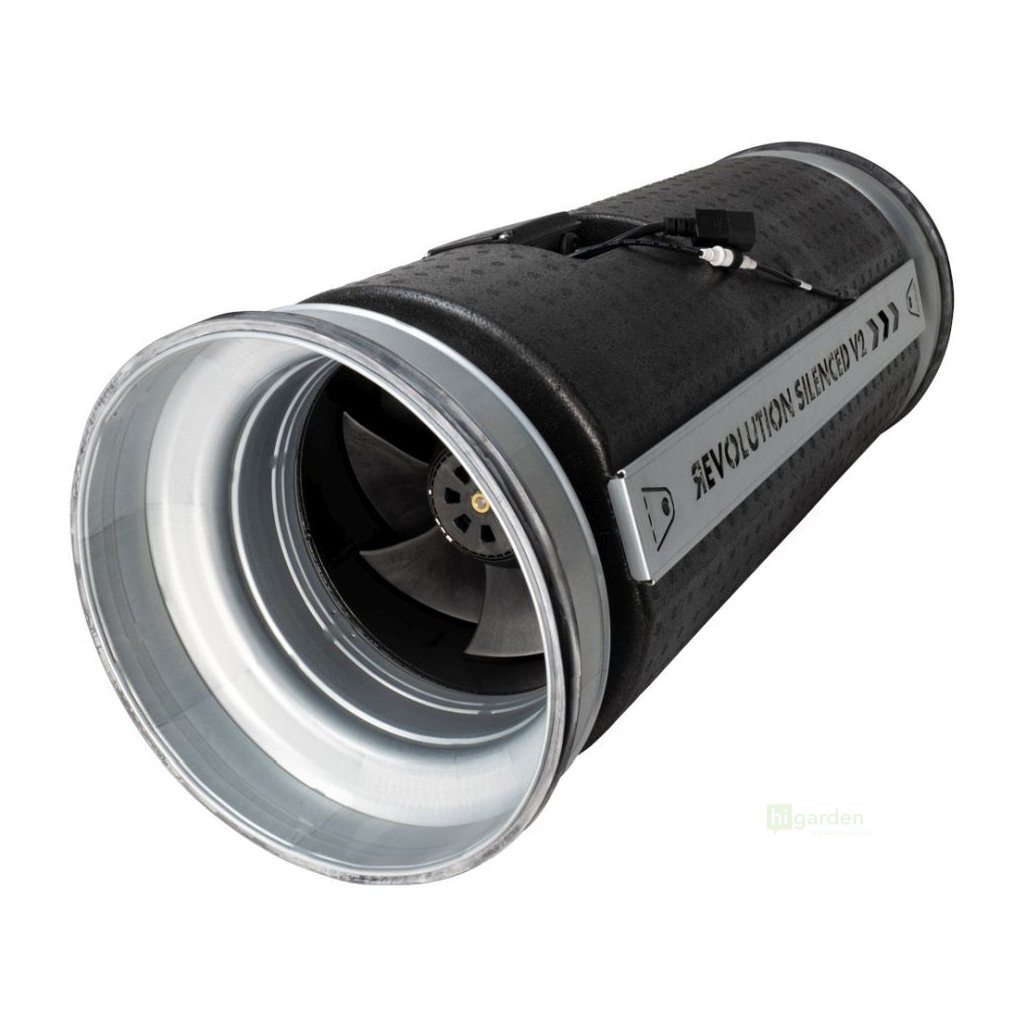

SystemAir Revolution Silenced V2 EC Vector Low Power 315mm, 2224m3/h

Revolution Silenced V2 is the ultimate sound-absorbing fan with quiet EC motors and double balanced blades. Powerful, aerodynamically optimized blades and guide vanes create fast, high-pressure airflows that can be noisy. The Revolution Silenced V2 fan housing contains noise-reducing foam that does not absorb moisture or dust and has been specially formulated for ventilation systems.

The fan, flanges, and baffles are sealed in a lightweight, rugged, molded outer housing that reduces noise.

• The most efficient fan on the market is now the quietest.
• Superior performance and airflow.
• Sealed housing to prevent leaks.
• Hanging brackets for easy installation.
• Extremely light weight.
• IEC cable attached.
• Fully serviceable.
• Maintenance free.
• Made in Germany.
• 2 years warranty.

Technical specifications:

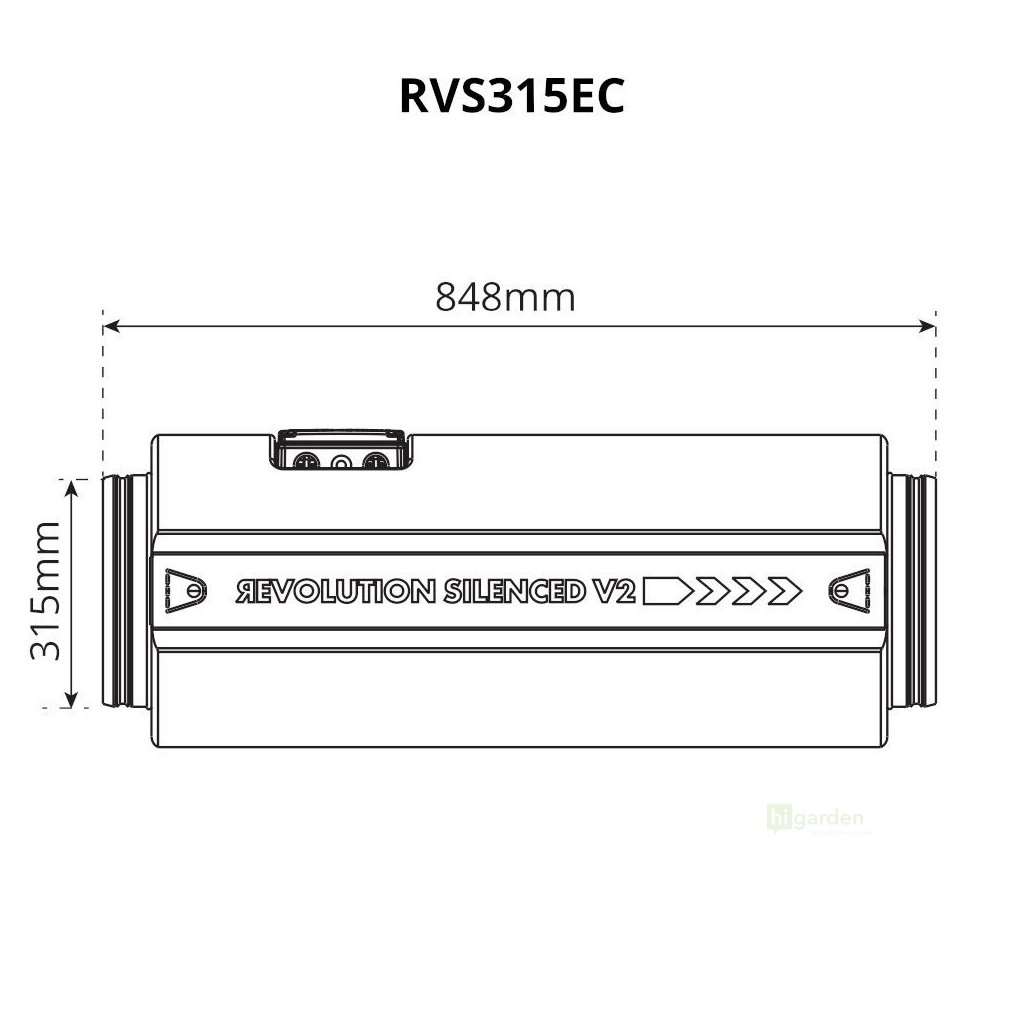

• 315 mm flange diameter.
• Length: 848 mm

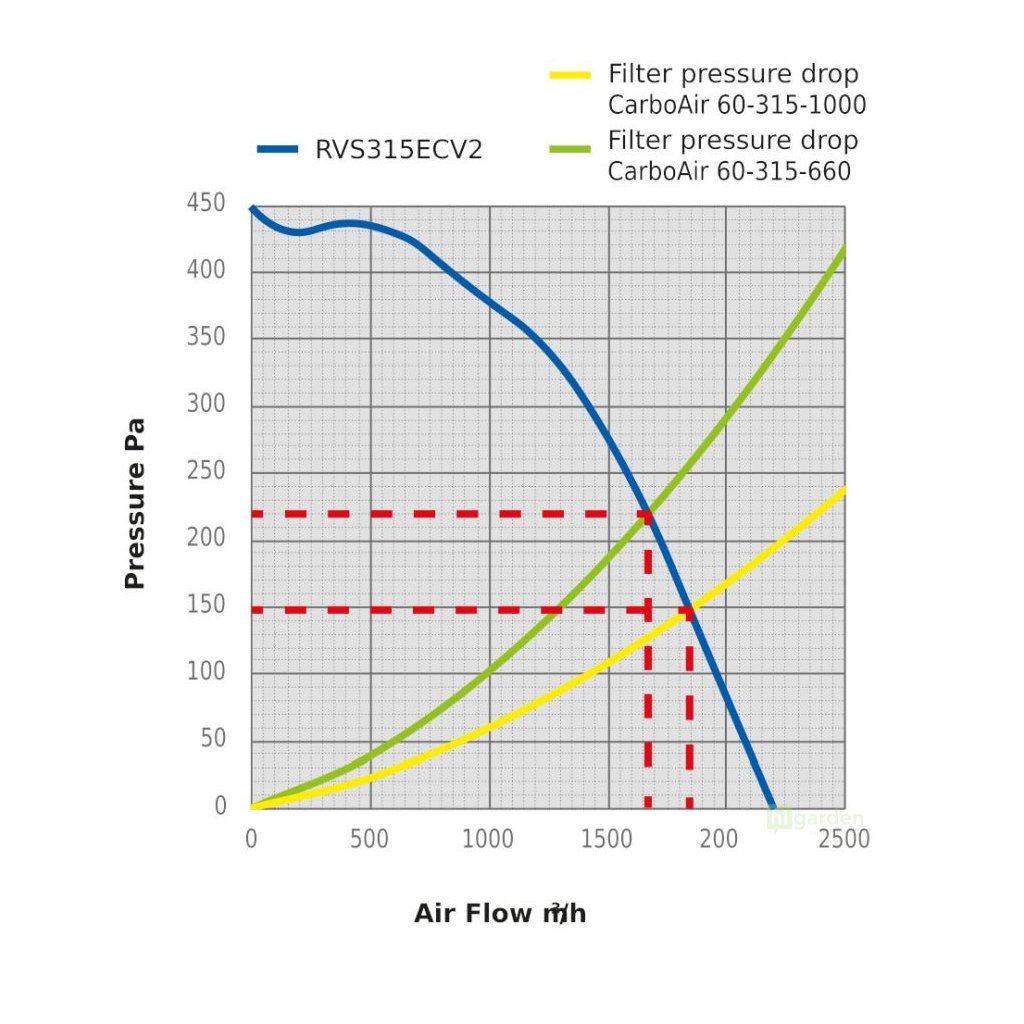

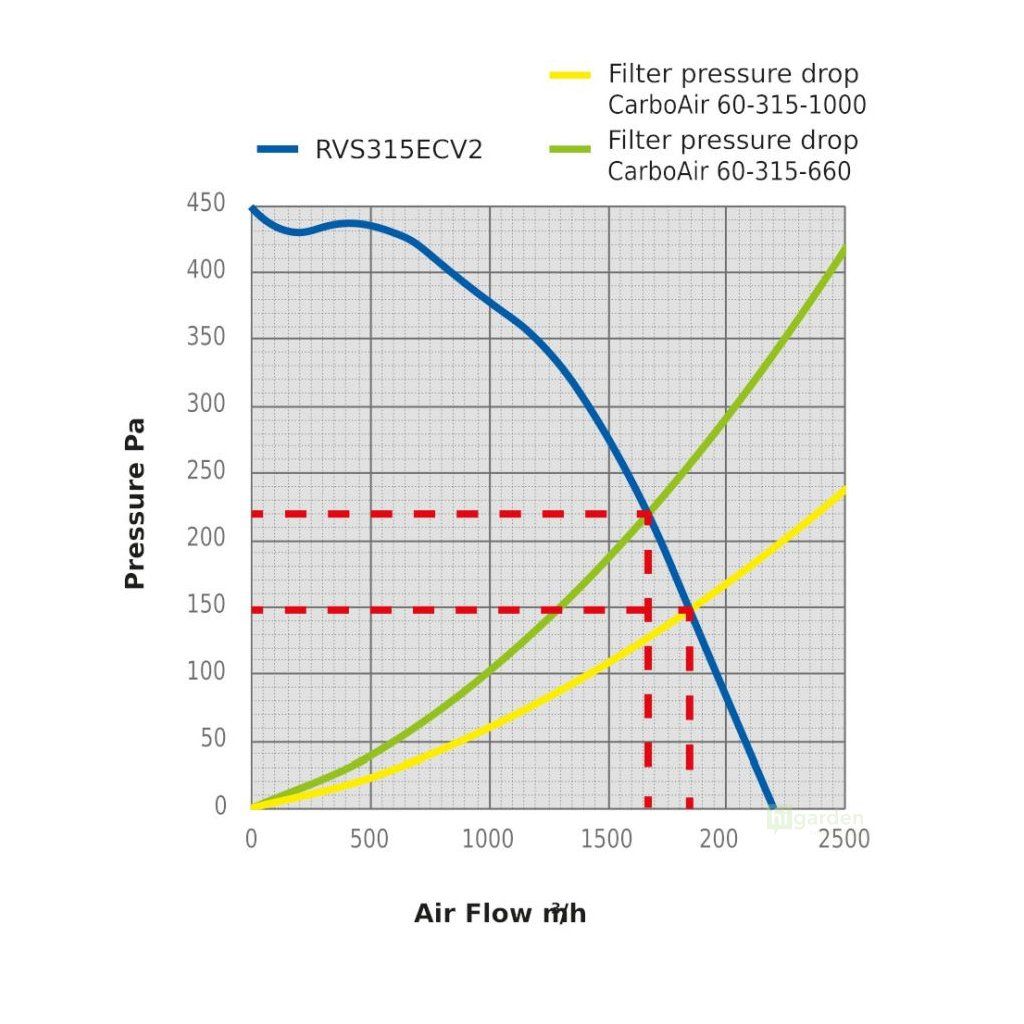

• Max. air flow: 2224 m3/h
• Max. air flow with filter: 1550 m3/h (with CarboAir 60, 315 mm)
• Pressure drop with filter: 205 Pa (with CarboAir 60, 315 mm)
